Compact Telescopic Loader Cost
2 Ton Telescopic Boom Loader – Compact and maneuverable for tight spaces.
Wide-View Cabin with Dual Doors – Easy access and excellent ventilation.
Multifunction Joystick – One control for driving, lifting, and attachments.
Self-Leveling Boom & Hydrostatic 4WD – Smooth and precise operation.
Hydraulic Quick Hitch with Electric & Hydraulic Outputs – Compatible with various
Product Introduction

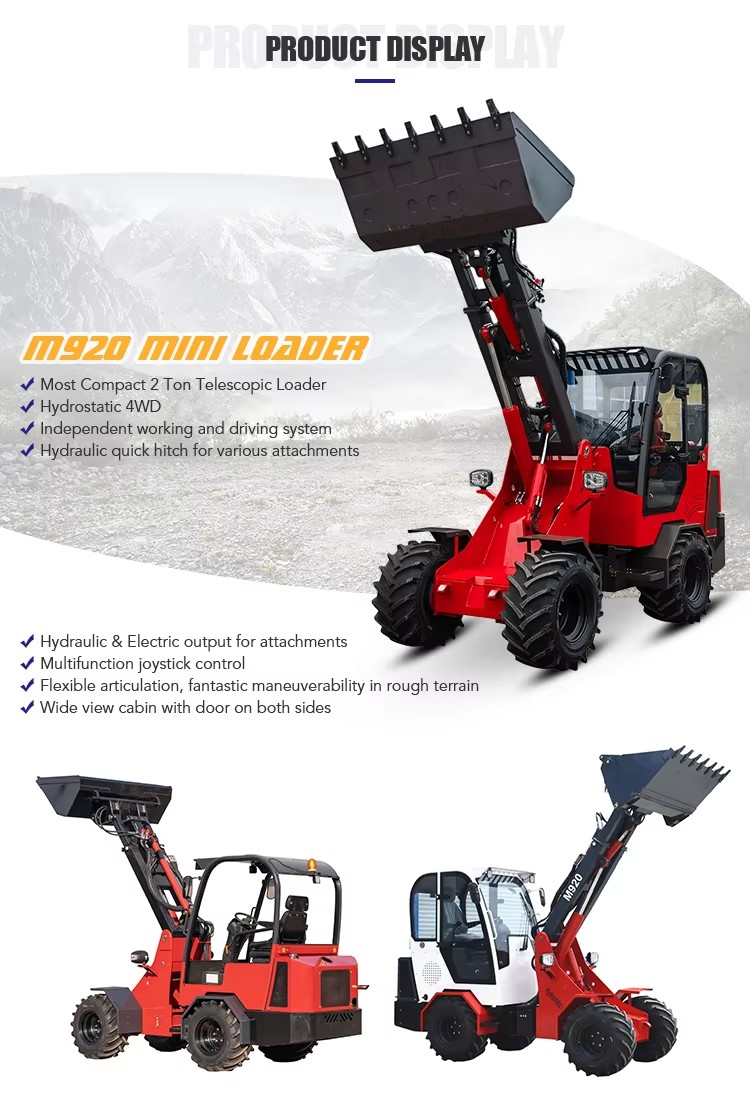

STEEL CAMEL M920 small front end telescopic wheel loader is quite a multifunction machine, you can use it for various work, like farming, gardenning, landscaping, animal house, construction, bee keeping, minicipal work etc.
Higher reach than same size normal loader;
Rear fixed seat, more lifting capacity;
Flexible articulation, fantistic maneuverability in rough terrain;
Can choose single/double pump's flow for attachments;
Full metal cover, solid and long lasting;

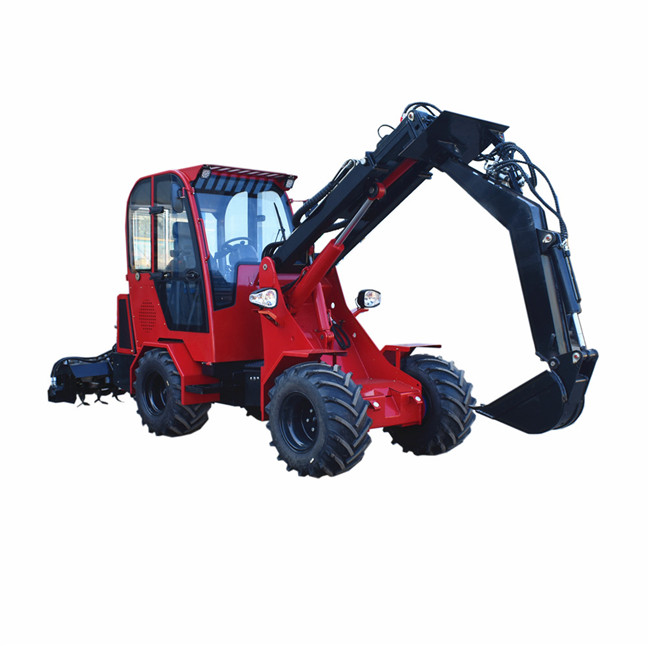

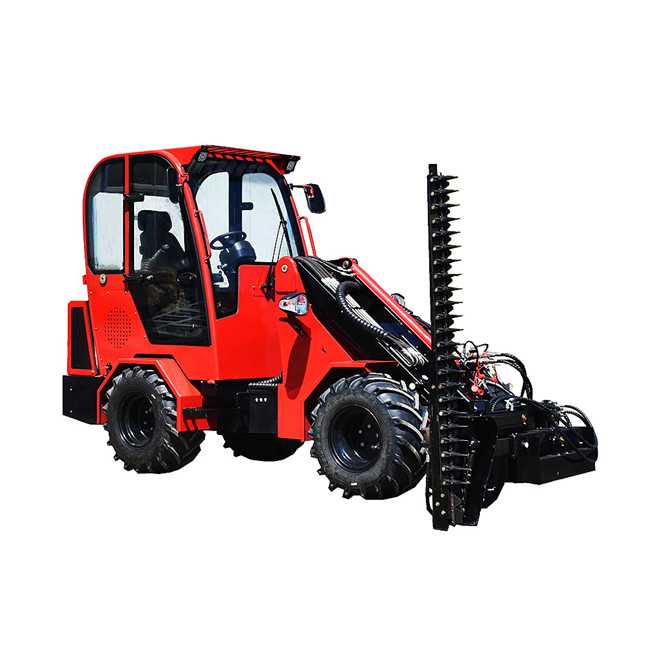

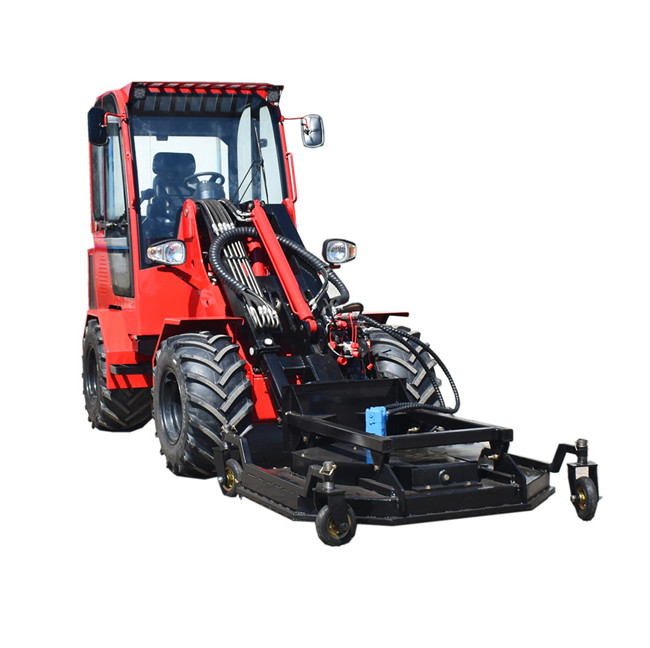

Multipurpose, both front ant rear end can hook some attachments;
Hydrostatic 4 wheel drive;
Telescopic boom with self levering, boom floating;
Product Specifications
M915 Small 4wd Telescopic Loader | ||
Description | Unit | Data |
Lifting capacity | kg/lbs | 2000 / 4400 |
Bucket capacity | m3 | 1 |
Max. Lifting height to pin (Boom extended) | mm/inch | 3766 / 148 |
Max. Lifting height to pin (Boom retracted) | mm/inch | 2996 / 118 |
Weight without bucket | Kg/lbs | 2750 / 6050 |
Engine brand | Yunnei/Yanmar/Kohler | |
Rated power | kw/hp | 50~55 / 68~75 |
Dimension | mm/inch | 3766*1560*2378 / 148*62*95 |
Transmission | Hydrostatic | |
Speed | Km/h Mile/h | 0~12~24 / 0~7~15 |
Pump | Italian variable plunger pump | |
Motor | Orbital Motor | |
Driving | 4 wheel drive | |
Turning angel | ° | 45 |
Min. turning radius (outer wheel) | mm/inch | 3224 / 127 |
Min. ground clearance | mm/inch | 330 / 13 |
Wheel Track | mm/inch | 1165 / 47 |
Wheelbase | mm/inch | 1880 / 75 |
Tyre | 31X15.5-15 | |
System pressure | Mpa/Psi | 21 / 3045 |
Auxiliary Flow | L/min Gal/min | 41*2 / 11*2 |
Fuel tank | L/Gal | 42 / 11 |
Oil tank | L/Gal | 80 / 21 |
Customization
With our in-house R&D capabilities, we deliver flexible customization options designed to meet your specific requirements:
Color & Design: Choose your desired color and paint scheme to perfectly match your brand or project style.
OEM Branding: Full OEM support to customize machines with your logo and brand identity.
Engine Options: A variety of engines are available, including leading Chinese brands, Euro Stage III/V, and EPA Tier 4-compliant models.
Technical Customization: We can manufacture custom adapter plates and components according to your technical drawings or specifications.

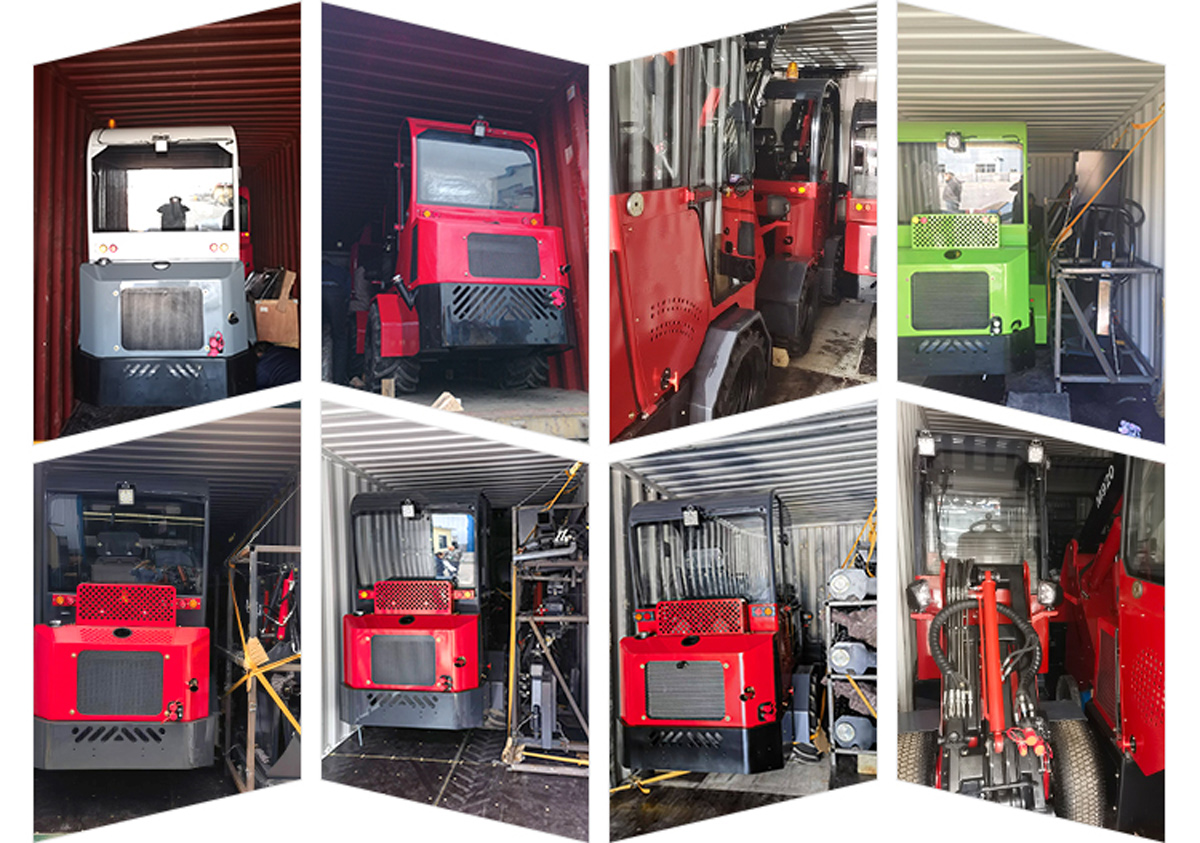

Packing & Delivery
Thanks to its compact size, the M910 mini loader can be loaded directly into shipping containers without disassembly, significantly improving transport efficiency.
A standard 20-foot container holds up to 2 units.
A 40-foot container can accommodate up to 4 units.
This optimizes container space and helps reduce shipping costs.
Certificates
Over the years of development, we have secured 9 patents and have been recognized as a National High-Tech Enterprise.
As premium-grade equipment, all our machines are CE-certified, ensuring compliance with European safety and quality standards.
FAQ
Q: Are you a factory?
A: Yes, we are a direct manufacturer, and you are welcome to visit our factory at any time.
Q: Do you offer customization services?
A: Definitely! We provide flexible customization options. Please contact us for further details.
Q: What post-sale support do you offer?
A: We provide product warranty and lifelong after-sales support to ensure your peace of mind.

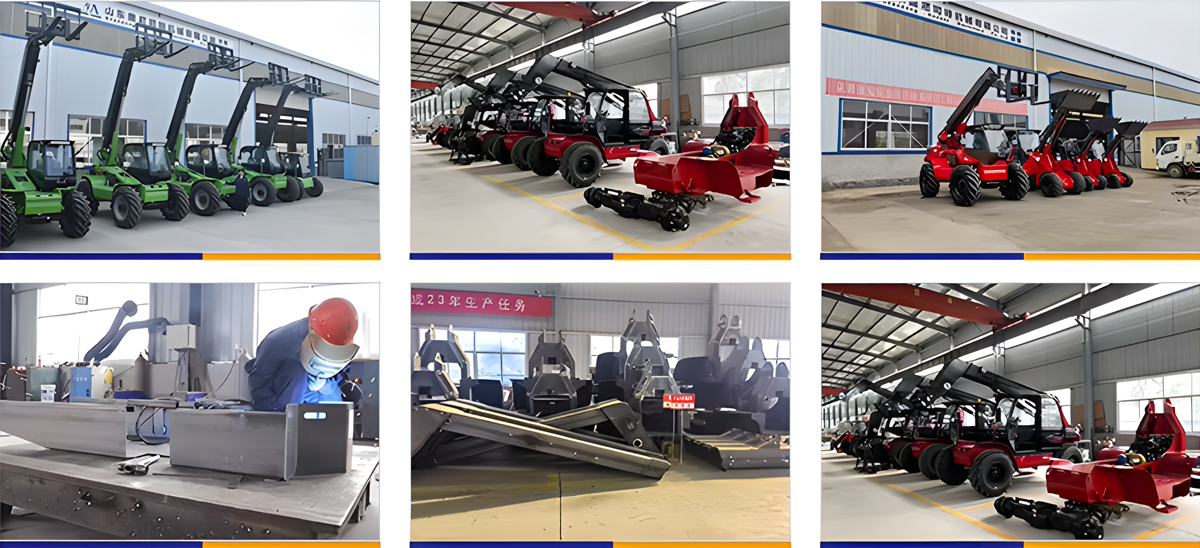

Company Profile

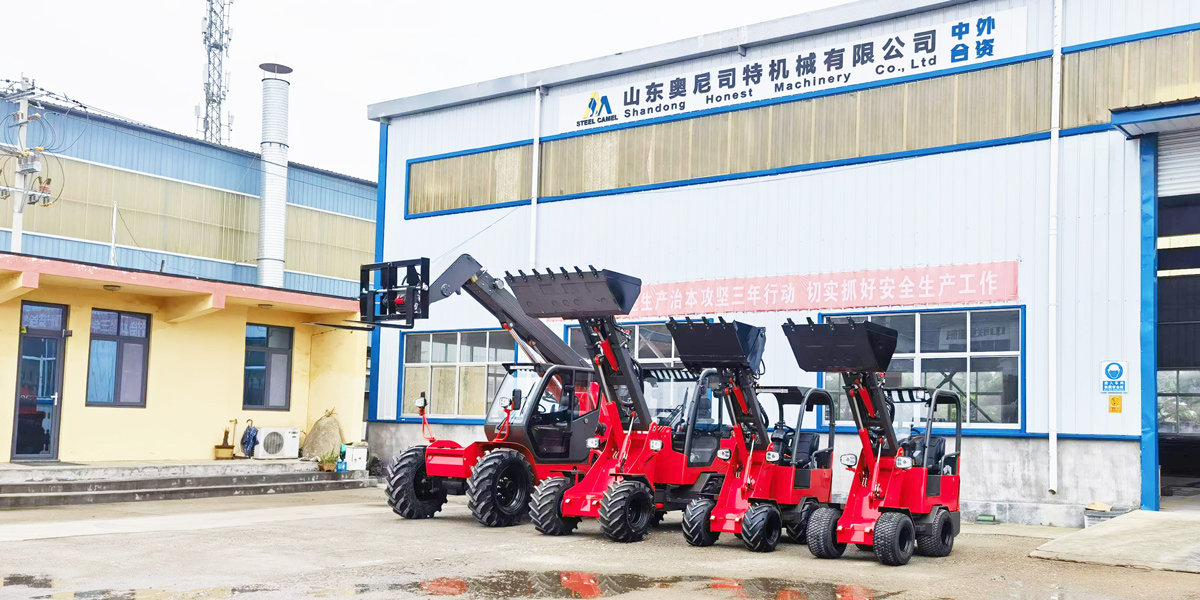

Shandong Honest Machinery Co., Ltd is a China-Poland joint venture dedicated to the development and manufacturing of high-quality machinery tailored to meet evolving market demands.
Since our founding, we have introduced three core product lines: telescopic loaders, telehandlers, and a wide variety of over 60 attachments designed for diverse applications. Our products are exported globally, serving customers across Europe, the Americas, Oceania, and Southeast Asia. Our international dealer network continues to grow steadily, reflecting our increasing global recognition and trust.
