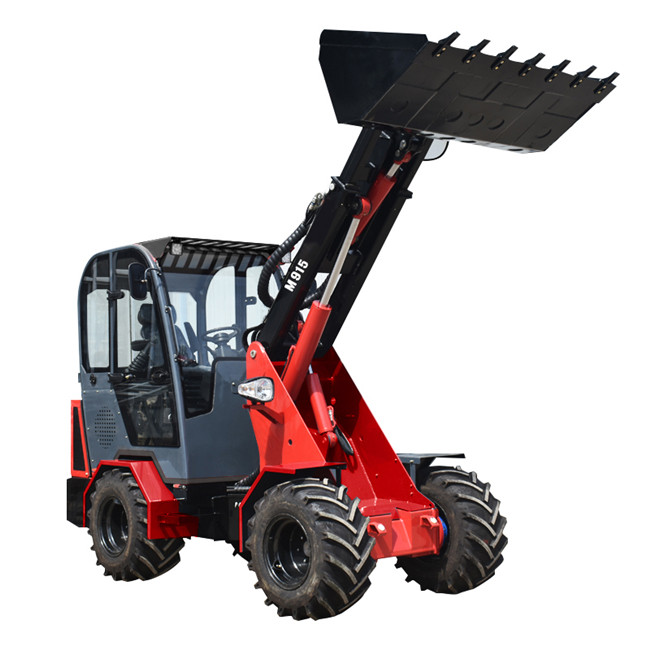

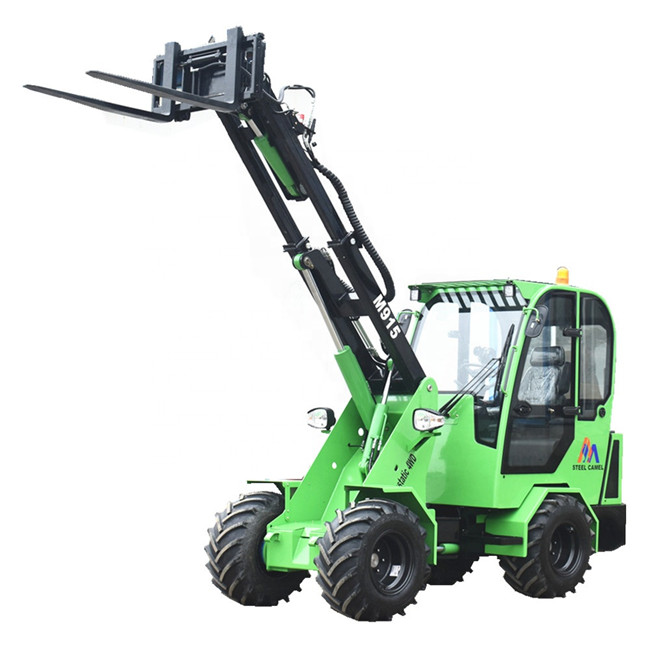

1.5 ton Telescopic Loader
1.5 Ton Telescopic Boom Loader – Compact and maneuverable for tight spaces.
Wide-View Cabin with Dual Doors – Easy access and excellent ventilation.
Multifunction Joystick – One control for driving, lifting, and attachments.
Self-Leveling Boom & Hydrostatic 4WD – Smooth and precise operation.
Hydraulic Quick Hitch with Electric & Hydraulic Outputs – Compatible with various
Product Introduction

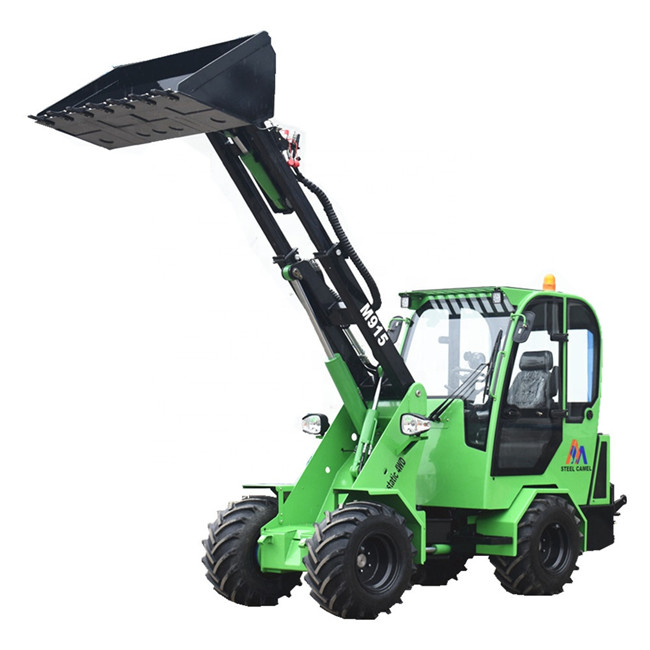

STEEL CAMEL M915 hydrostatic telescopic wheel loader
Telescopic boom with hydraulic quick hitch for various attachments. More useful than other normal wheel loaders.
Combination of loader and tractor, both front and rear end can hook attachments, money for one machine, you get both a loader and a tractor, very compact size, can be driven into the warehouse or garage.
Wide view cabin, both sides have a door, adjustable steering column, joystick, forward/reverse pedal.
Operating friendly and easily.
Cabin can be tipping over, full access to the inner system, maintenance convenient and simple
Product Specifications
M915 Small 4wd Telescopic Loader | ||
Description | Unit | Data |
Lifting capacity | kg/lbs | 1500 / 3300 |
Bucket capacity | m3 | 0.8 |
Max. Lifting height to pin (Boom extended) | mm/inch | 3515 / 141 |
Max. Lifting height to pin (Boom retracted) | mm/inch | 2886 / 115 |
Weight without bucket | Kg/lbs | 2460 / 5412 |
Engine brand | Yunnei/Yanmar/Kohler | |
Rated power | kw/hp | 36~44 / 50~60 |
Dimension | mm/inch | 3694*1560*2378 / 148*62*95 |
Transmission | Hydrostatic | |
Speed | Km/h Mile/h | 0~12~24 / 0~7~15 |
Pump | Italian variable plunger pump | |
Motor | Orbital Motor | |
Driving | 4 wheel drive | |
Turning angel | ° | 45 |
Min. turning radius (outer wheel) | mm/inch | 3200 / 128 |
Min. ground clearance | mm/inch | 330 / 13 |
Wheel Track | mm/inch | 1165 / 47 |
Wheelbase | mm/inch | 1880 / 75 |
Tyre | 31X15.5-15 | |
System pressure | Mpa/Psi | 21 / 3045 |
Auxiliary Flow | L/min Gal/min | 41*2 / 11*2 |
Fuel tank | L/Gal | 42 / 11 |
Oil tank | L/Gal | 80 / 21 |
Customization
As a manufacturer with in-house R&D capabilities, we offer flexible customization solutions tailored to your unique needs:
Color & Design Customization – Select your preferred color and paint scheme to align with your brand or project aesthetics.
OEM Branding Services – Add your own logo and brand identity with full OEM support.
Engine Configuration Options – Available with a range of engines, including top Chinese brands, Euro Stage III/V, and EPA Tier 4-compliant models.
Technical Customization – We can produce custom adapter plates and components based on your specifications or technical drawings.
Packing & Delivery
Thanks to its compact size, the M910 mini loader can be loaded directly into shipping containers without disassembly, greatly improving transport efficiency:
Up to 2 units fit inside a 20-foot container.
Up to 4 units fit inside a 40-foot container.
This optimizes container space and reduces shipping costs.
Certificates
Over the years of development, we have secured 9 patents and have been recognized as a National High-Tech Enterprise.
As premium-grade equipment, all our machines are CE-certified, ensuring compliance with European safety and quality standards.
