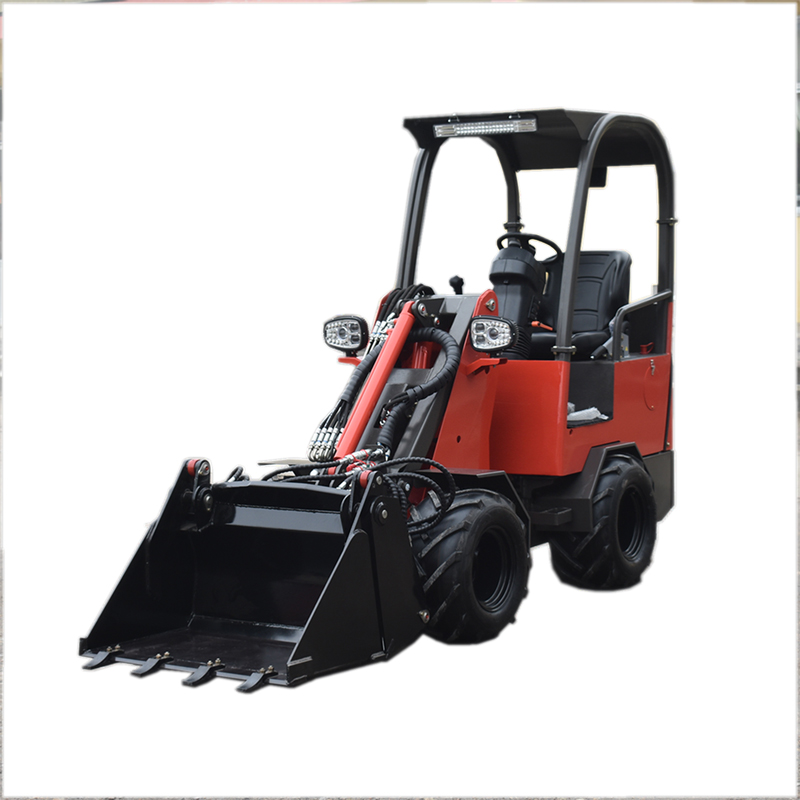

Articulated Mini Telescopic Loader
Ultra-compact body – Less than 1m wide, perfect for tight spaces.

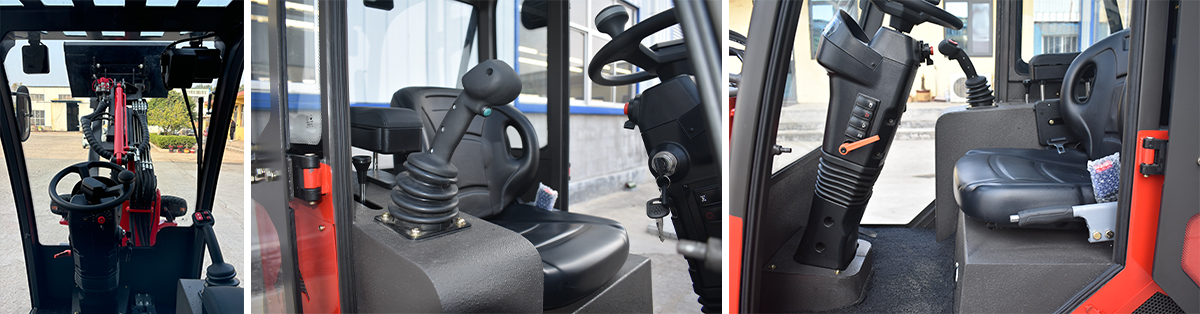

Comfort cabin – Wide view, good ventilation, dual-door access.
Easy control – One-hand joystick & hydrostatic drive for smooth precision.

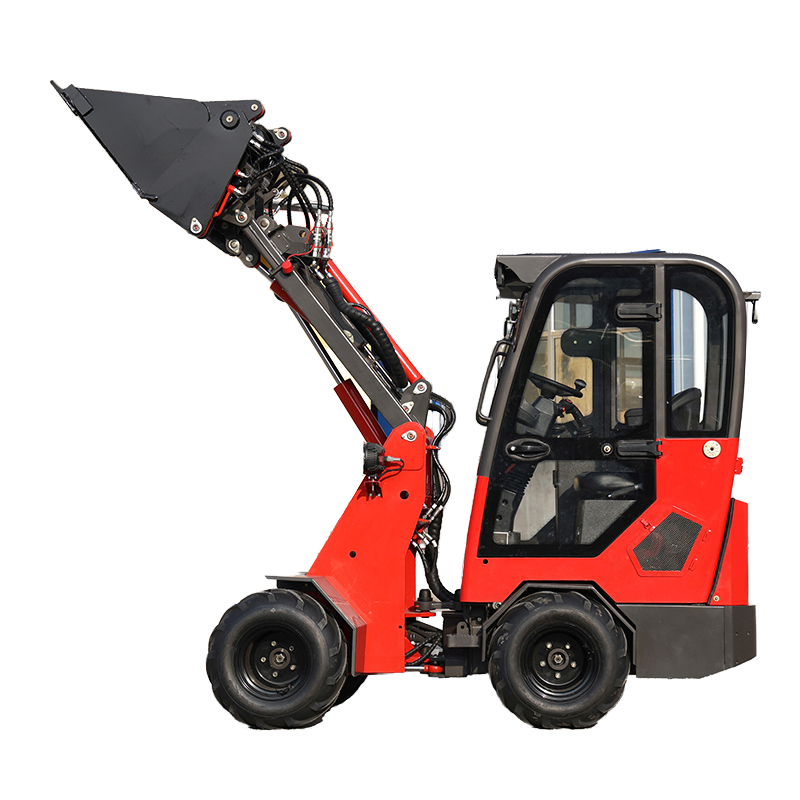

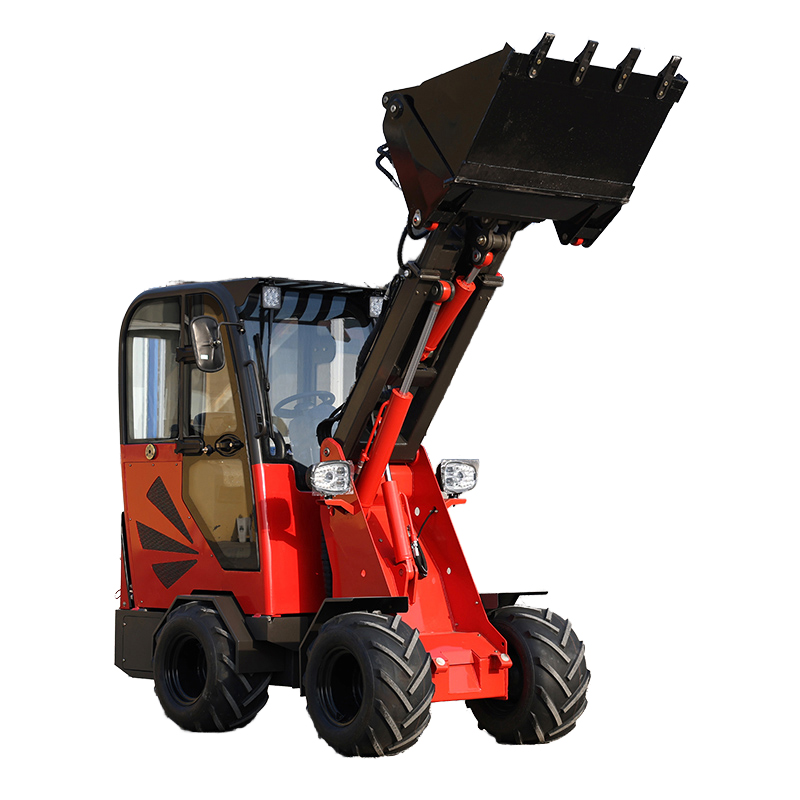

Telescopic boom – Self-leveling with extended reach and stability.
Multi-attachment ready – Quick hitch with hydraulic & electric outputs.
Product Introduction

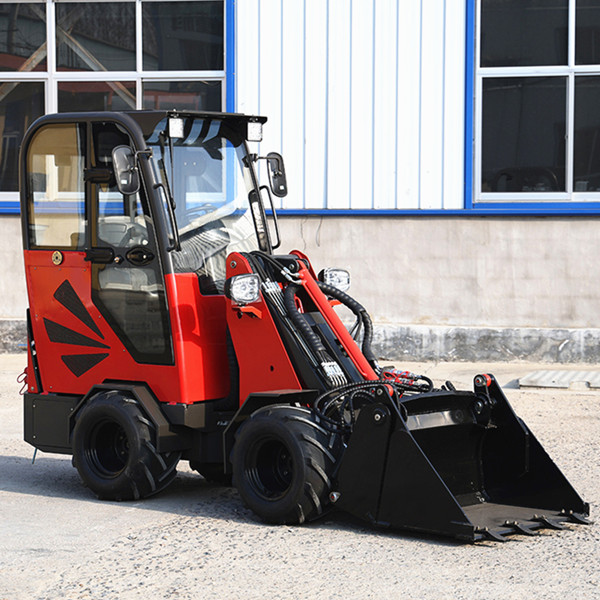

STEEL CAMEL M906 mini telescopic loader is purpose-built for working in narrow spaces. With a width of only 970mm, it easily passes through warehouse doors and tight paths.
Its telescopic boom offers greater versatility than standard boom loaders.
Equipped with a powerful hydrostatic 4-wheel drive system and joystick control.
Featuring hydraulic quick hitch and over 60 types of attachments, it can handle almost all your farming, construction, gardening, and other tasks.
More than just a loader — it’s a comprehensive solution machine for all your needs.
Product Specifications
Description | Unit | Data |
Lifting capacity | kg/lbs | 600 / 1320 |
Bucket capacity | m3 | 0.35 |
Max. Lifting height to pin (Boom extended) | mm/inch | 2930 / 117 |
Max. Lifting height to pin (Boom retracted) | mm/inch | 2270 / 91 |
Weight without bucket | Kg/lbs | 1500 / 3300 |
Engine Brand | Changchai/Perkins/Yanmar | |
Rated power | kw/hp | 18 / 25 |
Dimension | mm/inch | 2569*970*2070 / 103*39*83 |
Transmission | Hydrostatic | |
Speed | Km/h Mile/h | 0~10 / 0~6 |
Pump | Italian variable plunger pump | |
Motor | Orbital Motor | |
Driving | 4 wheel drive | |
Turning angel | ° | 41.2 |
Min. turning radius (outer wheel) | mm/inch | 2090 / 84 |
Min. ground clearance | mm/inch | 184 / 7 |
Wheel Track | mm/inch | 742 / 30 |
Wheelbase | mm/inch | 1170 / 47 |
Tyre | 23x8.50-12 | |
System pressure | Mpa/Psi | 20 / 2900 |
Auxiliary Flow | L/min Gal/min | 40 / 10 |
Fuel tank | L/Gal | 25 / 7 |
Oil tank | L/Gal | 31 / 8 |
Product Details
Customization
As a factory with in-house R&D capabilities, we offer flexible customization to meet your specific needs:
Color & Design: Customize colors and paint schemes to your preference.
Branding Support: OEM available — apply your own logo and branding.
Engine Options: Choose from Chinese brands, Euro 3/5, and EPA Tier 4 compliant engines.
Technical Customization: Custom adapter plates and production per your technical drawings or specifications are supported.
Packing & Delivery

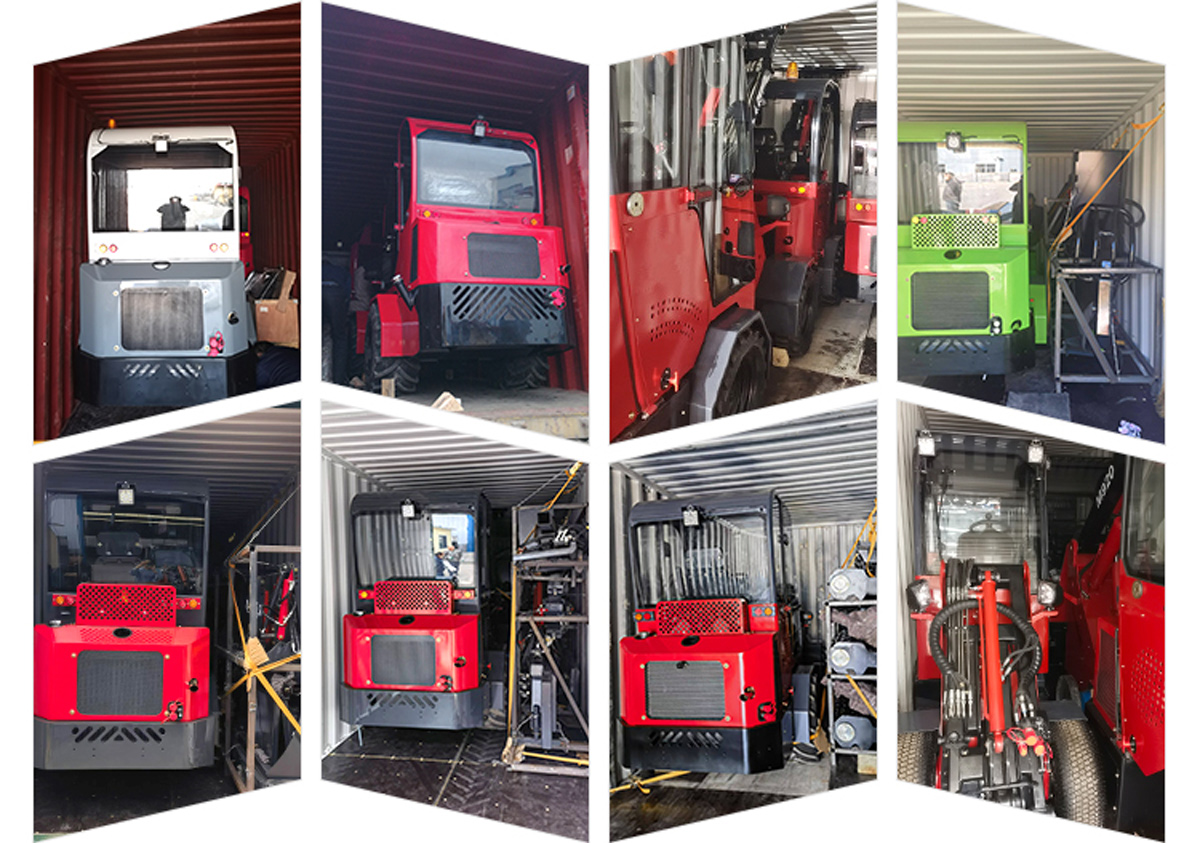

Thanks to the compact size of the M910 mini loader, it can be driven into container directly. Loading quantity: 2 sets/20ft container; 4 sets/40ft container.
Certificates
During years of developement, we have obtained 9 patents, and was authorized "National High Tech Enterprise"
As high-end products, all our machines have CE certificates.
FAQ:
Q: Are you a factory?
A: Yes, we are a direct manufacturer. You are welcome to visit our factory.
Q: Do you offer customization services?
A: Yes, please contact us for details.
Q: What kind of service can I expect after purchase?
A: We provide warranty coverage and lifelong after-sales support.
Company Profile
Shandong Honest Machinery Co., Ltd is a China-Poland joint venture specializing in the development and production of high-end machinery tailored to global market demands.
We offer three core product lines — telescopic loaders, telehandlers, and over 60 attachments for versatile applications. Our products are exported worldwide, with strong presence in Europe, the Americas, Oceania, and Southeast Asia.
With a steadily expanding dealer network, we are committed to providing reliable international service and long-term customer satisfaction.
