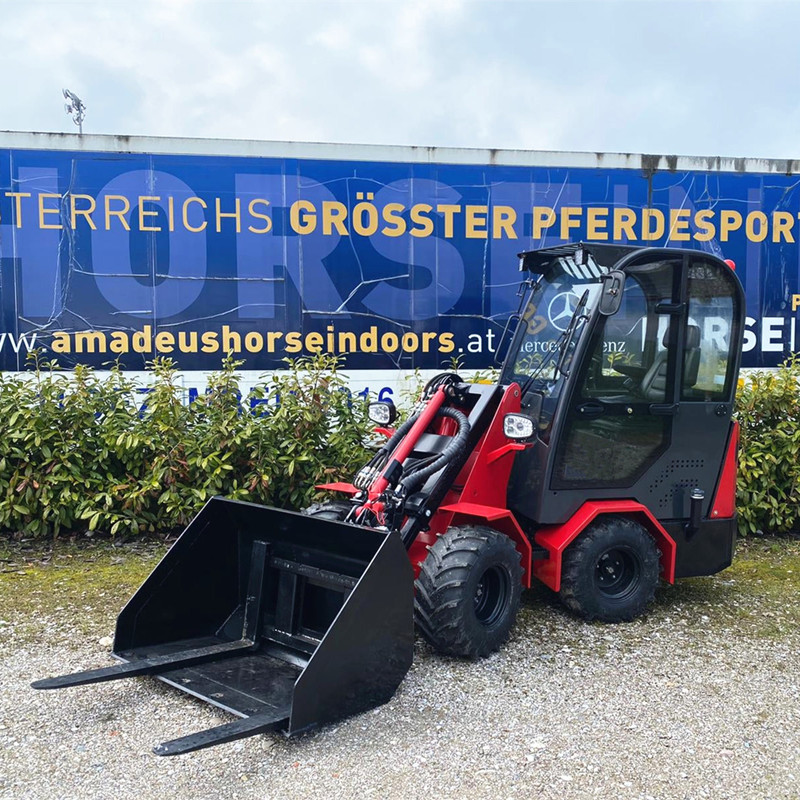

Bucket Telescopic Wheel Loader
1 Ton Telescopic Boom Loader – Compact and maneuverable for tight spaces.
Wide-View Cabin with Dual Doors – Easy access and excellent ventilation.
Multifunction Joystick – One control for driving, lifting, and attachments.
Self-Leveling Boom & Hydrostatic 4WD – Smooth and precise operation.
Hydraulic Quick Hitch with Electric & Hydraulic Outputs – Compatible with various
Product Introduction
Different with normal gear drive wheel loaders STEEL CAMEL M910 small telescopic loader adopted fully hydrostatic transmission system.
A piston pump together with 4 hydraulic motors on wheels combine a closed circle for driving.
Thanks to this independent working and driving system, its output to the attachments won't be influenced by the machine's driving speed.
Multifunctional---Its front and rear hydraulic output, quick coupling and 3 point hitch, together with hundreds of different attachments can finish almost all the work needs.
STEEL CAMEL loader products can be found working in various fields, like farming, gardenning, landscaping, animal house, construction, bee keeping, minicipal work etc.
Product Specifications
Description | Unit | Data |
Lifting capacity | kg/lbs | 1000 / 2200 |
Bucket capacity | m3 | 0.5 |
Max. Lifting height to pin (Boom extended) | mm/inch | 3207 / 128 |
Max. Lifting height to pin (Boom retracted) | mm/inch | 2509 / 100 |
Weight without bucket | Kg/lbs | 2000 / 4400 |
Engine brand | Yunnei/Yanmar/Kohler | |
Rated power | kw/hp | 33 / 45 |
Dimension | mm/inch | 2860*1300*2260 / 114*52*90 |
Transmission | Hydrostatic | |
Speed | Km/h Mile/h | 0~12 / 0~7 |
Pump | Italian variable plunger pump | |
Motor | Orbital Motor | |
Driving | 4 wheel drive | |
Turning angel | ° | 45 |
Min. turning radius (outer wheel) | mm/inch | 2300 / 92 |
Min. ground clearance | mm/inch | 268 / 11 |
Wheel Track | mm/inch | 995 / 40 |
Wheelbase | mm/inch | 1380 / 55 |
Tyre | 26X12-12 | |
System pressure | Mpa/Psi | 21 / 3045 |
Auxiliary Flow | L/min Gal/min | 33.5*2 / 9*2 |
Fuel tank | L/Gal | 30 / 8 |
Oil tank | L/Gal | 45 / 12 |
Customization
With our in-house R&D team, we offer flexible, made-to-order customization to match your exact requirements:
Color & Design – Choose your preferred color and paint style to fit your brand image or project needs.
OEM Branding – Apply your logo and identity with complete OEM support.
Engine Choices – Options include leading Chinese brands, Euro Stage III/V, and EPA Tier 4-compliant engines.
Technical Customization – We manufacture custom adapter plates and components based on your drawings or technical specifications.
Packing & Delivery
The compact size of the M910 mini loader allows it to be driven directly into a shipping container without disassembly, saving time and reducing risk during transit. A 20-foot container can fit 2 units, while a 40-foot container can hold 4 units, maximizing space and lowering transportation costs.
Certificates
Over the years of development, we have secured 9 patents and have been recognized as a National High-Tech Enterprise.
As premium-grade equipment, all our machines are CE-certified, ensuring compliance with European safety and quality standards.
FAQ
Q: Are you a factory?
A: Yes, we are a direct manufacturer, and you are welcome to visit us anytime.
Q: Do you provide customization?
A: Absolutely. We offer flexible customization options—contact us for details.
Q: What after-sales support do you offer?
A: We provide a warranty and lifelong after-sales service for your peace of mind.
Company Profile
Shandong Honest Machinery Co., Ltd is a China–Poland joint venture focused on designing and manufacturing premium machinery to meet evolving market needs.
Our portfolio includes three core product lines—telescopic loaders, telehandlers, and over 60 types of attachments for diverse applications. We export to Europe, the Americas, Oceania, and Southeast Asia, supported by a growing international dealer network. Our commitment to quality, innovation, and reliability has earned us a strong reputation worldwide.
