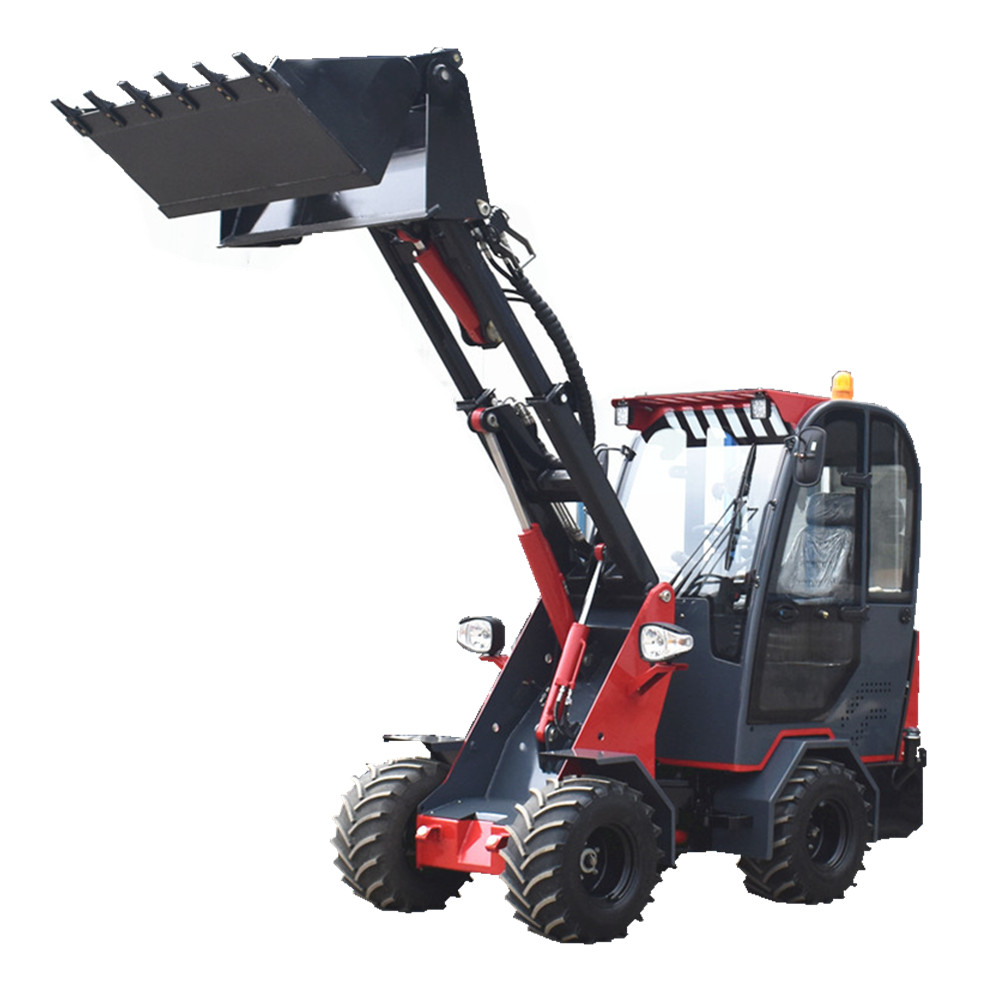

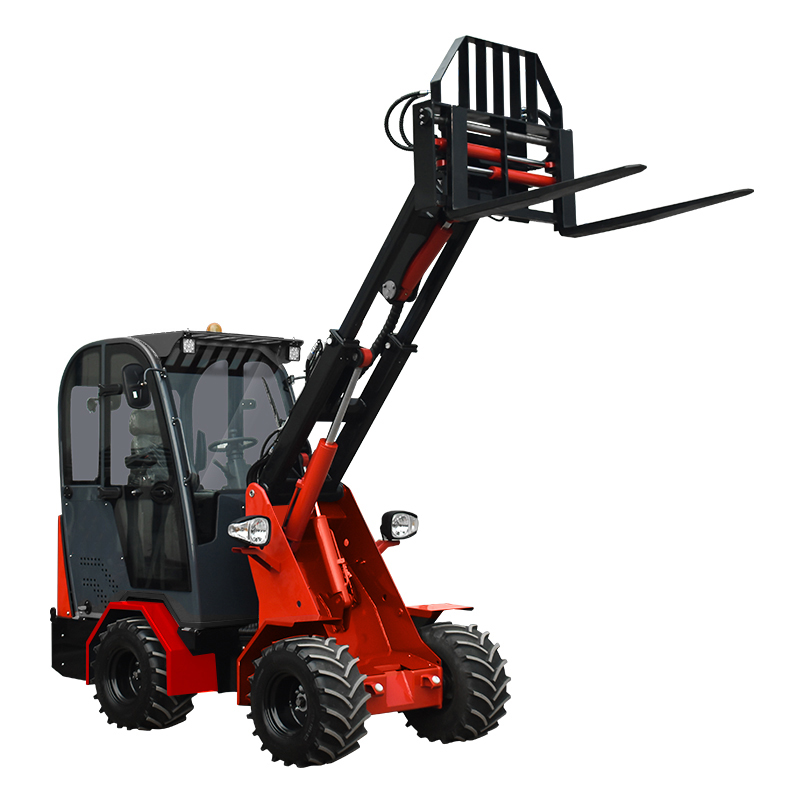

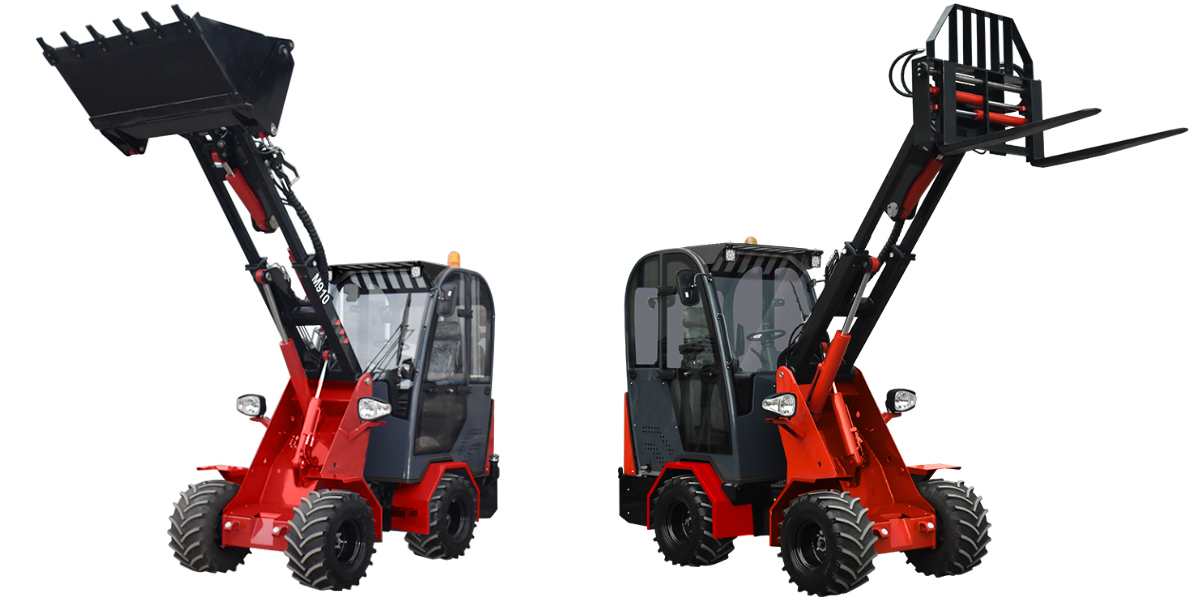

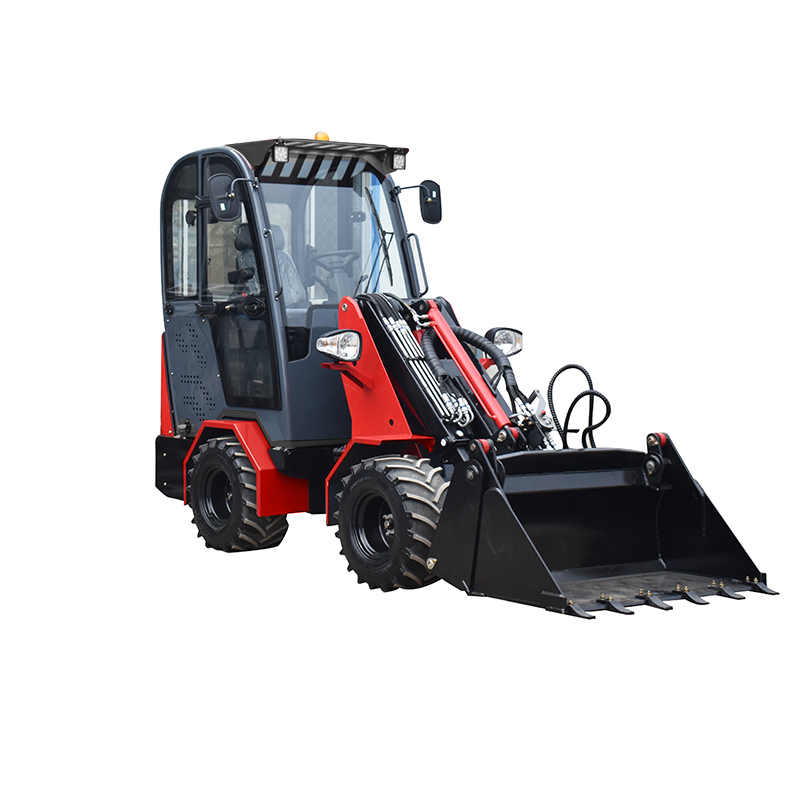

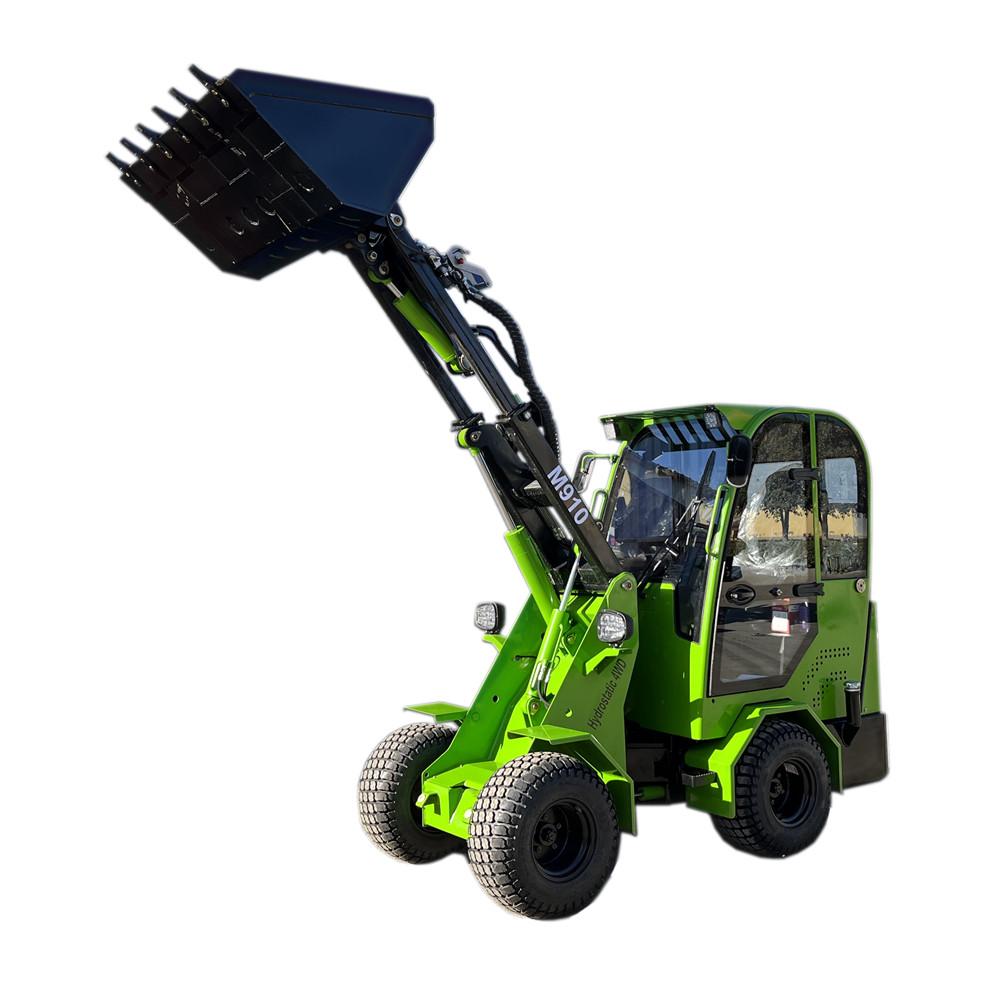

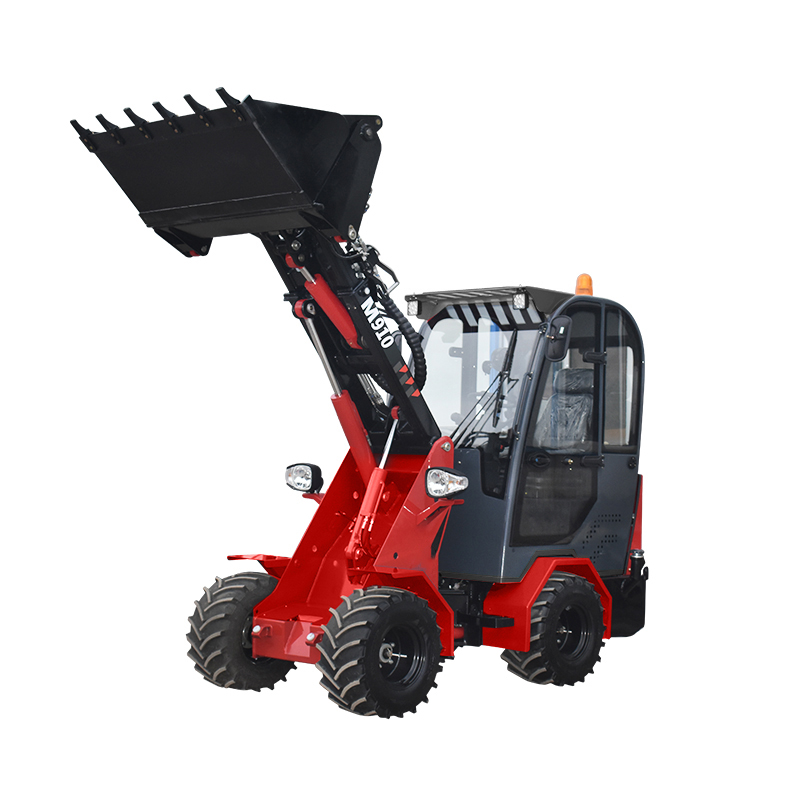

Mini Telescopic Boom Loader
1 Ton Telescopic Boom Loader – Compact and maneuverable for tight spaces.
Wide-View Cabin with Dual Doors – Easy access and excellent ventilation.
Multifunction Joystick – One control for driving, lifting, and attachments.
Self-Leveling Boom & Hydrostatic 4WD – Smooth and precise operation.
Hydraulic Quick Hitch with Electric & Hydraulic Outputs – Compatible with various
Product Introduction
Small 4WD Telescopic Loader M910 is a machine that can meets all your expect and work requirements.
Its hydrostatic motor drive system, rear seated arrangement offers comfortable driving experience.
The front telescopic boom with hydraulic output and quick hitch, enable it to finish almost all your work with different attachments.
The optiona rear hydraulic output and 3 point linkage can turn it into a tractor which can hook attachments at rear end.
Top components, strict QC system, good service, guarantee your good purchasing and using experience with STEEL CAMEL.
There's 3 models of M900 series mini telescopic loader, besides the M910 mini loader, we also have M915 and M920, in the sheet below you can see technical details of each model.
Product Specifications
Small 4wd Telescopic Loader STEEL CAMEL brand M910 | ||
Description | Unit | Data |
Lifting capacity | kg/lbs | 1000 / 2200 |
Bucket capacity | m3 | 0.5 |
Max. Lifting height to pin (Boom extended) | mm/inch | 3207 / 128 |
Max. Lifting height to pin (Boom retracted) | mm/inch | 2509 / 100 |
Weight without bucket | Kg/lbs | 2000 / 4400 |
Engine brand | Yunnei/Yanmar/Kohler | |
Rated power | kw/hp | 33 / 45 |
Dimension | mm/inch | 2860*1300*2260 / 114*52*90 |
Transmission | Hydrostatic | |
Speed | Km/h Mile/h | 0~12 / 0~7 |
Pump | Italian variable plunger pump | |
Motor | Orbital Motor | |
Driving | 4 wheel drive | |
Turning angel | ° | 45 |
Min. turning radius (outer wheel) | mm/inch | 2300 / 92 |
Min. ground clearance | mm/inch | 268 / 11 |
Wheel Track | mm/inch | 995 / 40 |
Wheelbase | mm/inch | 1380 / 55 |
Tyre | 26X12-12 | |
System pressure | Mpa/Psi | 21 / 3045 |
Auxiliary Flow | L/min Gal/min | 33.5*2 / 9*2 |
Fuel tank | L/Gal | 30 / 8 |
Oil tank | L/Gal | 45 / 12 |
Customization
As a manufacturer with dedicated in-house R&D, we provide flexible customization options tailored to your specific requirements:
Color & Design: Choose your desired color and paint scheme to perfectly match your brand or project style.
OEM Branding: Full support for applying your logo and brand identity on the equipment.
Engine Choices: Various engine options available, including leading Chinese brands, Euro Stage III/V, and EPA Tier 4-compliant engines.
Technical Customization: We can manufacture custom adapter plates and components according to your technical drawings or specifications.
Packing & Delivery
The compact size of the M910 mini loader allows it to be loaded directly into shipping containers without disassembly, streamlining transportation.
Up to 2 units fit in a 20-foot container.
Up to 4 units fit in a 40-foot container.
This maximizes container space and reduces shipping costs effectively.
Certificates
Over the years of development, we have secured 9 patents and have been recognized as a National High-Tech Enterprise.
As premium-grade equipment, all our machines are CE-certified, ensuring compliance with European safety and quality standards.
FAQ
Q: Are you a factory?
A: Yes, we are a direct manufacturer and warmly welcome you to visit our factory anytime.
Q: Do you provide customization services?
A: Absolutely! We offer flexible customization solutions. Please contact us for further information.
Q: What after-sales support do you provide?
A: We provide a product warranty along with lifelong after-sales service for your complete peace of mind.
Company Profile
Shandong Honest Machinery Co., Ltd is a China-Poland joint venture dedicated to developing and manufacturing high-quality machinery aligned with changing market demands.
Since our inception, we have introduced three main product lines: telescopic loaders, telehandlers, and a comprehensive range of over 60 attachments designed for various applications. Our products are exported globally, reaching customers in Europe, the Americas, Oceania, and Southeast Asia. With an expanding international dealer network, our brand continues to earn worldwide recognition and trust.
