2Ton Telescopic Mini Wheel Loader Price
CE-certified;
Optional EU Stage V / EPA Tier 4 engines;
Hydrostatic 4-wheel drive, variable speed;
Differential lock for tough terrain;
Two-speed (12/24 km/h) hydraulic wheel motors with electric speed control;
Self-leveling telescopic boom;
Independent work-drive system for maximum output with machine stability;
100 L/min high-flow hydraulic output for powering heavy-duty attachments;
Multifunctional joystick control;
Hydraulic quick-coupling system for diverse attachments;
Italian PWG piston pump and HC valve;
Waterproof electrical components;
Adjustable steering column and operator seat;
Flexible articulation, excellent maneuverability over rough terrain;
Tilt-up cabin for full service access to all machine components.
Product Introduction
STEEL CAMEL M920 small front end telescopic boom wheel loader is quite a multifunction machine, you can use it for various works, like farming, gardenning, landscaping, animal house, construction, bee keeping, minicipal works etc.
1. Compact size, 3960*1562*2376 mm, easy transportation by cars / small home trucks with trailer.
2. Hydrostatic transmission, each wheel has a hydraulic motor, variable speed, simple driving like auto car, more efficient and convenient.
3. Telescopic boom increase its working scope than normal loaders.
4. Boom floating function, better handling the work on terrain ground.
5. Hydraulic and electric output offer multiple powers to the attachments

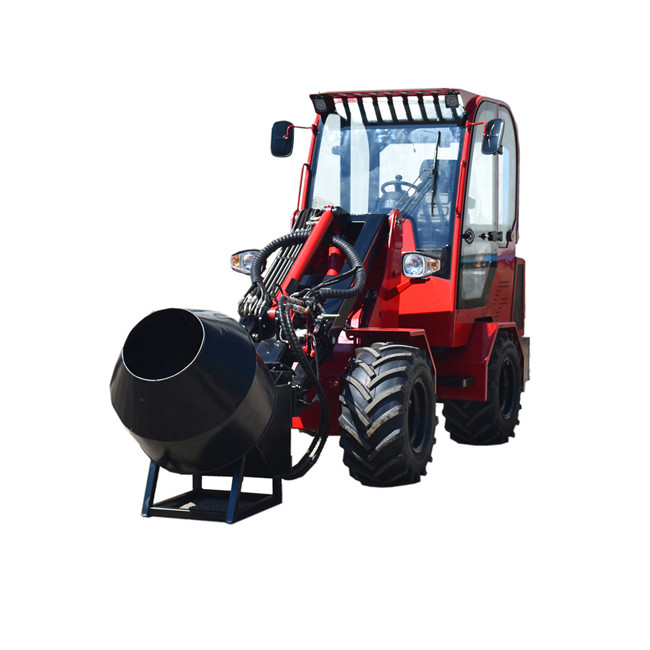

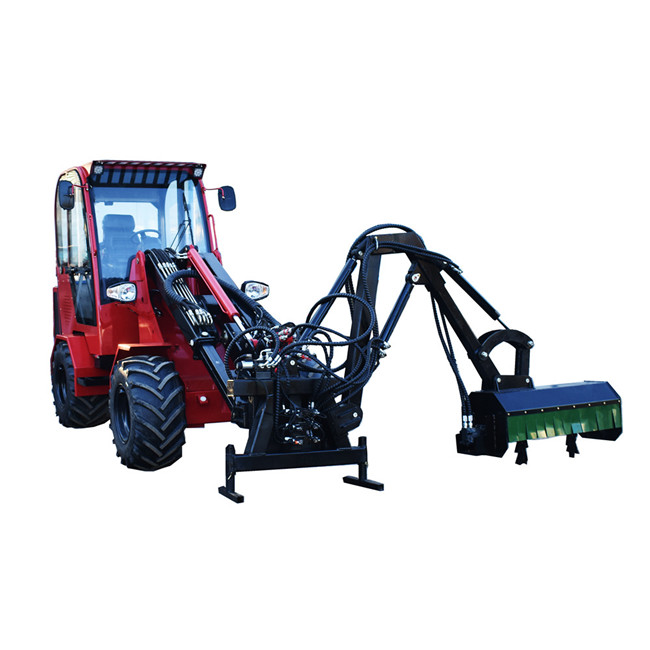

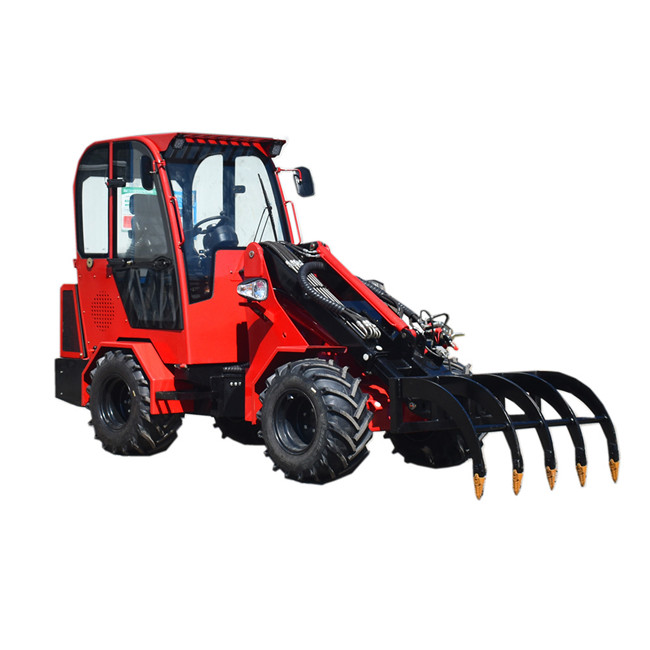

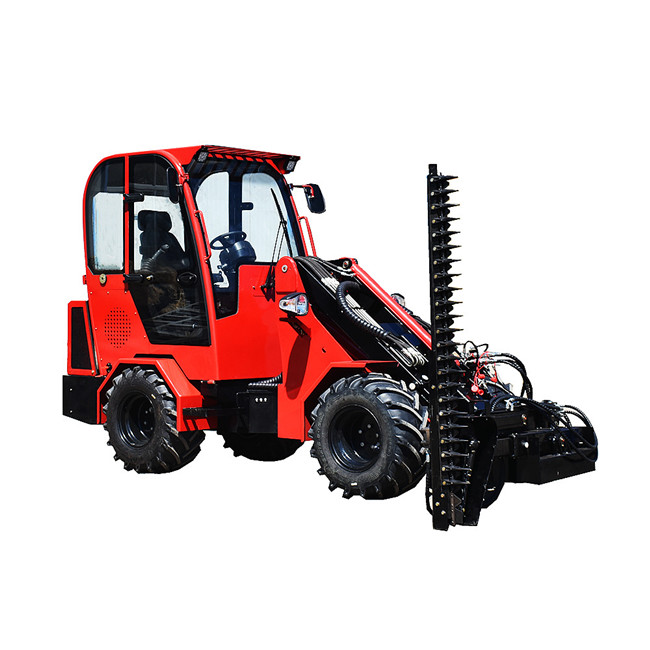

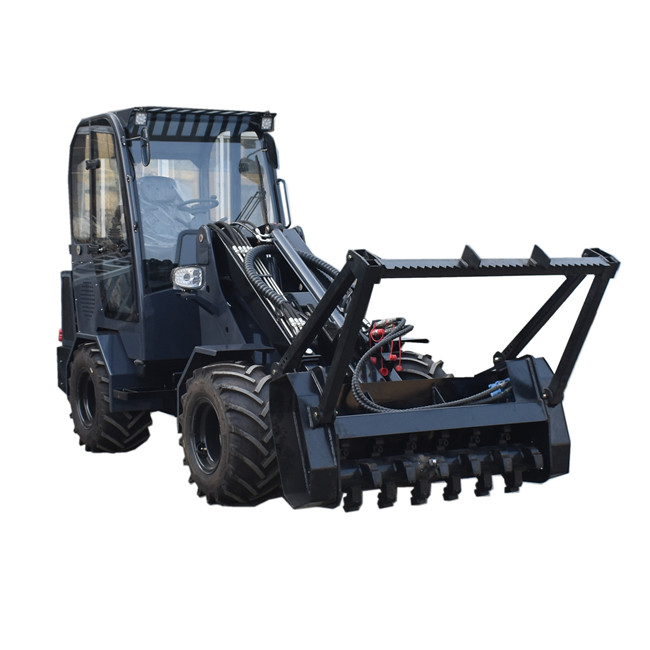

6. Hydraulic quick hitch plus more than 40 different attachments, offer a solution for all your work needs.
Product Specifications
Performance | |
Lifting capacity | 2000kg |
Bucket capacity | 1 cbm |
Max. Lifting height to pin (Boom extended) | 3752mm |
Max. Lifting height to pin (Boom retracted) | 3002mm |
Max. Dumping height with bucket | 3040mm |
Weight (with bucket) | 2750 kg |
Dimension | |
Max. length without bucket | 3960mm |
Max. width | 1562mm |
Max. height to top of cabin | 2378mm |
Tyres | |
Tyre size | 31x15.5-15 |
Tyre pressure | 2.8 bar |
Braking | |
Driving brake | Hydraulic brake wheel motor |
Parking brake | Built-in automatic brake |
Transmission | Hydrostatic |
Speed | 0~12~24 km/h, variable speed |
Pump | Italian PWG brand piston pump |
Motor | Four-wheel hydraulic piston wheel motors |
Driving | 4-wheel drive |
Turning angle | 45 degrees |
Min. turning radius (outer wheel) | 3224mm |
Min. ground clearance | 287mm |
Track | 1165mm |
Wheelbase | 1980mm |
Hydraulics | |
System pressure | 21Mpa |
Hydraulic output for working system | 100 L/min |
Hydraulic output for driving system | 120 L/min |
Capacity | |
Fuel tank | 50L |
Oil tank | 80L |
Customization
As a manufacturer with in-house R&D capabilities, we offer flexible customization solutions tailored to your unique needs:
Color & Design Customization – Select your preferred color and paint scheme to align with your brand or project aesthetics.
OEM Branding Services – Add your own logo and brand identity with full OEM support.
Engine Configuration Options – Available with a range of engines, including top Chinese brands, Euro Stage III/V, and EPA Tier 4-compliant models.
Technical Customization – We can produce custom adapter plates and components based on your specifications or technical drawings.
Packing & Delivery
Thanks to its compact dimensions, the M910 mini loader can be driven directly into a shipping container without the need for disassembly, making transportation highly efficient. Each 20-foot container can accommodate up to 2 units, while a 40-foot container can load up to 4 units, optimizing space and reducing shipping costs.
Certificates
Over the years of development, we have secured 9 patents and have been recognized as a National High-Tech Enterprise.
As premium-grade equipment, all our machines are CE-certified, ensuring compliance with European safety and quality standards.
FAQ
Q: Are you a factory?
A: Yes, we are a direct manufacturer. You're welcome to visit our factory anytime.
Q: Do you offer customization services?
A: Absolutely! We provide flexible customization. Feel free to contact us for more details.
Q: What kind of support can I expect after purchase?
A: We offer a product warranty and lifelong after-sales service for your peace of mind.
Company Profile
Shandong Honest Machinery Co., Ltd is a China-Poland joint venture committed to the development and production of high-quality machinery tailored to evolving market demands.
Since our establishment, we have launched three core product lines: telescopic loaders, telehandlers, and a diverse range of over 60 attachments suitable for various applications. Our products are exported worldwide, serving customers across Europe, the Americas, Oceania, and Southeast Asia. With a steadily expanding international dealer network, we continue to gain global recognition and trust in our brand.
