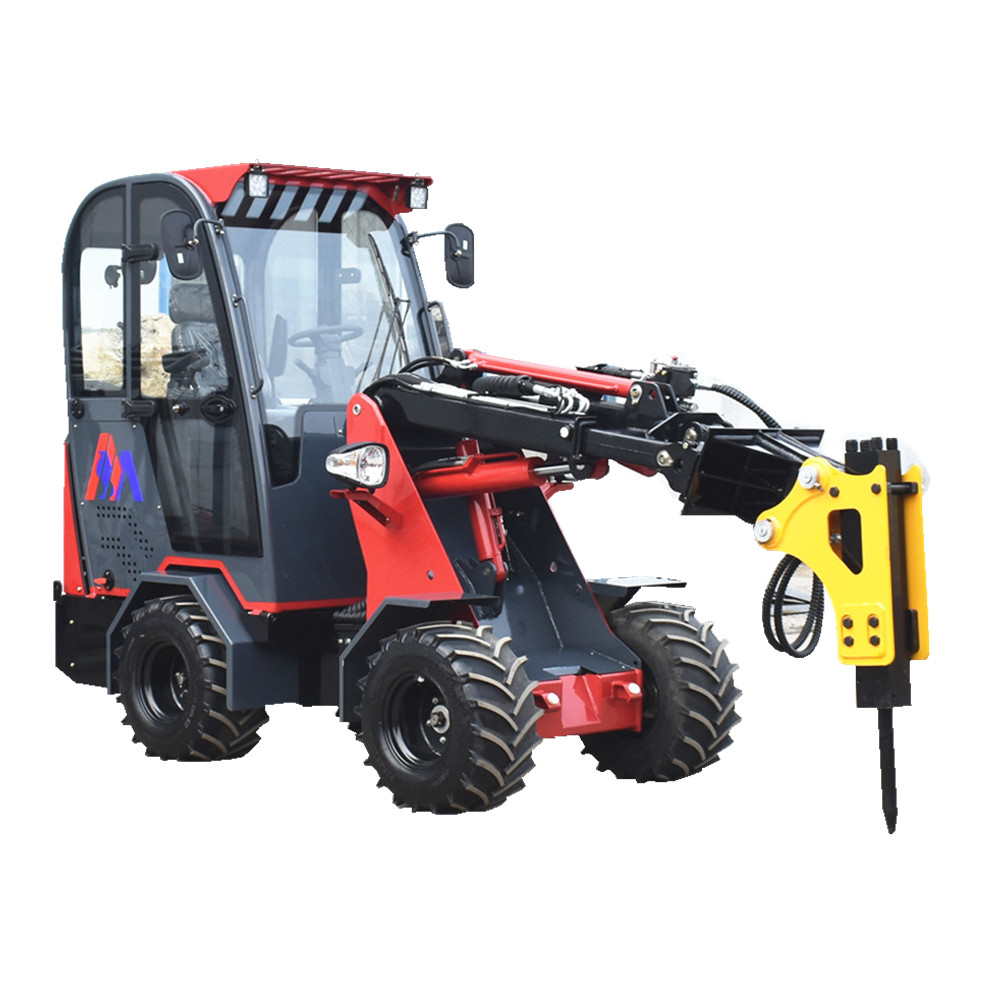

1 Ton Articulated Wheel Loader
1 Ton Telescopic Boom Loader – Compact and maneuverable for tight spaces.
Wide-View Cabin with Dual Doors – Easy access and excellent ventilation.
Multifunction Joystick – One control for driving, lifting, and attachments.
Self-Leveling Boom & Hydrostatic 4WD – Smooth and precise operation.
Hydraulic Quick Hitch with Electric & Hydraulic Outputs – Compatible with various
Product Introduction
STEEL CAMEL M910 multifunction tractor loader with telescopic boom is a machine that can meets all your expect and work requirements.
Its hydrostatic motor drive system, rear seated arrangement offers comfortable driving experience.
The front telescopic boom with hydraulic output and quick hitch, rear hydraulic output and 3 point linkage enable it to finish almost all your work with different attachments.
Top components, strict QC system, good service, guarantee your good purchasing and using experience with STEEL CAMEL
In a word, choose "STEEL CAMEL", you'll never be disappointed.
Product Specifications
M910 Small Telescopic Loader | ||
Description | Unit | Data |
Lifting capacity | kg/lbs | 1000 / 2200 |
Bucket capacity | m3 | 0.5 |
Max. Lifting height to pin (Boom extended) | mm/inch | 3207 / 128 |
Max. Lifting height to pin (Boom retracted) | mm/inch | 2509 / 100 |
Weight without bucket | Kg/lbs | 2000 / 4400 |
Engine brand | Yunnei/Yanmar/Kohler | |
Rated power | kw/hp | 33 / 45 |
Dimension | mm/inch | 2860*1300*2260 / 114*52*90 |
Transmission | Hydrostatic | |
Speed | Km/h Mile/h | 0~12 / 0~7 |
Pump | Italian variable plunger pump | |
Motor | Orbital Motor | |
Driving | 4 wheel drive | |
Turning angel | ° | 45 |
Min. turning radius (outer wheel) | mm/inch | 2300 / 92 |
Min. ground clearance | mm/inch | 268 / 11 |
Wheel Track | mm/inch | 995 / 40 |
Wheelbase | mm/inch | 1380 / 55 |
Tyre | 26X12-12 | |
System pressure | Mpa/Psi | 21 / 3045 |
Auxiliary Flow | L/min Gal/min | 33.5*2 / 9*2 |
Fuel tank | L/Gal | 30 / 8 |
Oil tank | L/Gal | 45 / 12 |
Customization
With our in-house R&D capabilities, we provide fully tailored customization services to meet your exact requirements:
Color & Design – Choose any color and paint scheme to match your brand or project style.
OEM Branding – Apply your logo and corporate identity with complete OEM support.
Engine Options – Select from a wide range of engines, including leading Chinese brands, Euro Stage III/V, and EPA Tier 4-compliant models.
Technical Adaptations – We can manufacture custom adapter plates and components based on your technical drawings or specific specifications.
Packing & Delivery
The compact design of the M910 mini loader allows it to be driven directly into a shipping container without disassembly, making logistics faster and more economical. A 20-foot container can hold up to 2 units, while a 40-foot container can load 4 units, maximizing capacity and reducing shipping costs.
Certificates
Over the years of development, we have secured 9 patents and have been recognized as a National High-Tech Enterprise.
As premium-grade equipment, all our machines are CE-certified, ensuring compliance with European safety and quality standards.
FAQ
Q: Are you a factory?
A: Yes. We are a direct manufacturer, and you’re welcome to visit our factory at any time.
Q: Do you offer customization services?
A: Absolutely. We offer flexible customization to suit your needs. Please contact us for details.
Q: What support will I receive after purchase?
A: We provide a product warranty along with lifelong after-sales service for your complete peace of mind.
Company Profile
Shandong Honest Machinery Co., Ltd is a China–Poland joint venture specializing in the design and manufacturing of premium machinery to meet changing market demands.
We have developed three core product lines—telescopic loaders, telehandlers, and more than 60 types of versatile attachments—serving a wide range of applications. Our products are exported worldwide, reaching customers across Europe, the Americas, Oceania, and Southeast Asia. Supported by a continuously expanding international dealer network, our brand is recognized globally for quality, reliability, and innovation.
