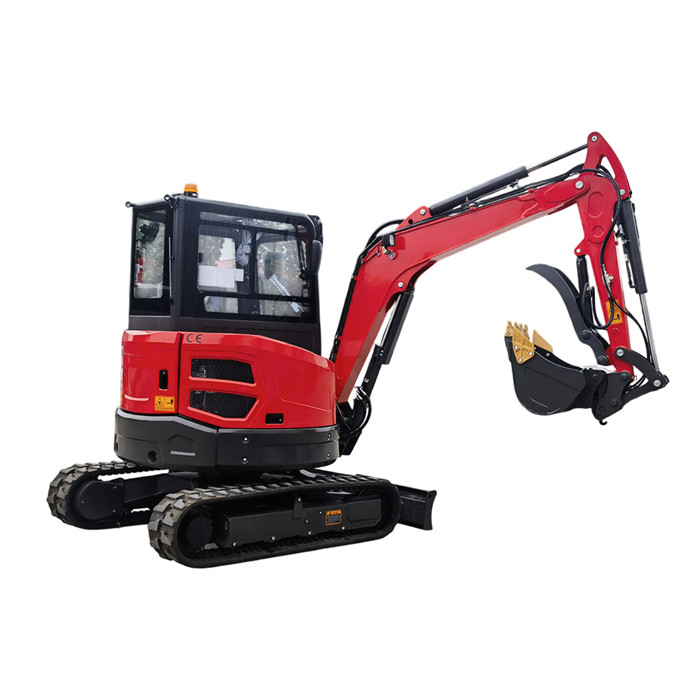

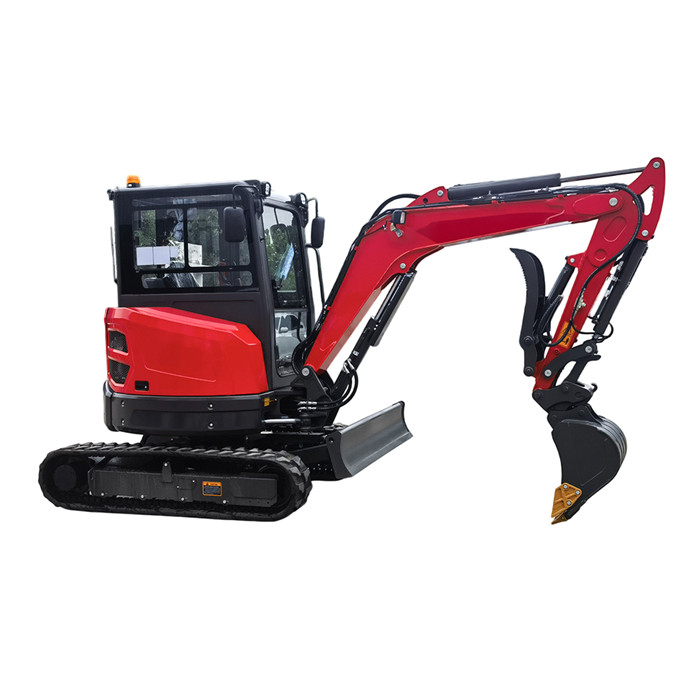

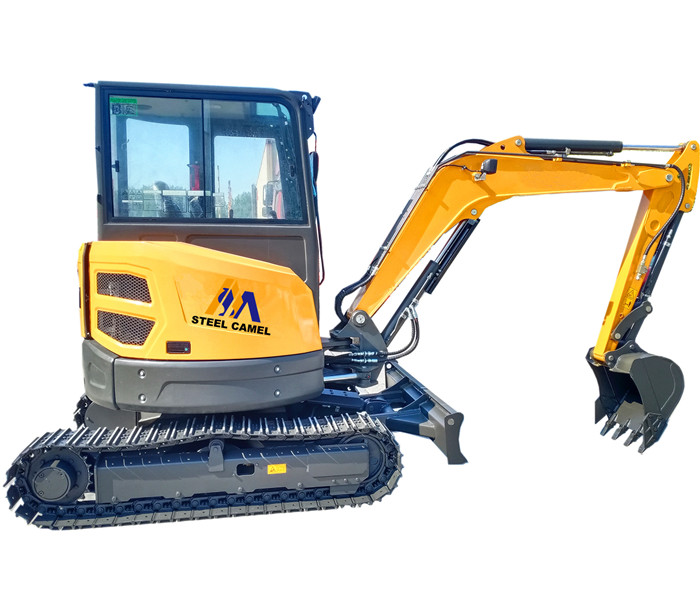

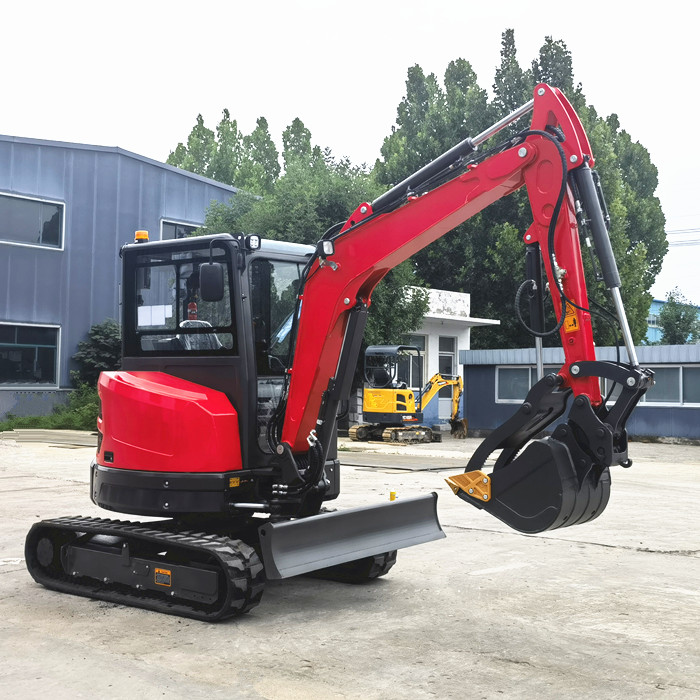

3.5 Ton Excavator
Powered by KUBOTA D1703 Engine – Reliable Euro 5/EPA Tier 4 compliance for clean, efficient performance.
Swing Boom Design – Enables easy operation near walls or tight edges.
Enclosed Cabin – Provides comfort and protection in all weather conditions.
Hydraulic Pilot Control – Ensures smooth and precise operation.
Versatile & Attachment-Ready – Equipped with rubber tracks, hammer pipeline, and optional hydraulic quick coupler.
Product Details
Product Introduction
Easy to Operate
The SC35 mini excavator is designed for user-friendly operation. Even customers with no prior experience can quickly learn to drive and operate it with ease.
Big Performance in a Compact Design
The 3.5 ton crawler excavator has strong lifting and digging performance, helping you complete tasks more efficiently. Its retractable undercarriage allows access to narrow spaces, while the dig-to-blade and dozer float functions make site cleanup simple.
Multipurpose Build
The 3.5 ton excavator comes equipped with a standard hammer pipeline, allowing direct use of a hydraulic breaker. With an optional hydraulic quick coupler, it can hook various attachments such as grapples, rippers, hammers, ect. quite a multifunction excavator machine.
Product Specifications
ENGINE | |
Model | KUBOTA D1703, Euro 5 |
Power /Rotation speed | 18.5kw(25HP)@2200rpm |
Type | 3 cylinders, Water cooled, in-line,4-stroke,mechnical pump. Naturally aspirated |
Max. torque of engine | 97.4Nm/ 1500rpm |
Displacement of engine | 1.642L |
TRACK SYSTEM | |
Maximum Travel speed(High-Low speed) | 2.4/4.4km/h |
Width of track shoe(Rubber ) | 300mm |
Carrier roller/Support wheel (one side) | 1/4 |
PERFORMANCE PARAMETER | |
Standard bucket capacity | 0.12m³ |
Swing speed | 12 rpm |
Max. Grade ability | 58% |
Max. Bucket digging force | 30.4KN |
Max. Arm digging force | 18.2KN |
Hydraulic system pressure | 22.5Mpa |
Machine weight | 2750kg |
Fuel tank capacity | 40L |
Hydraulic oil tank capacity | 44L |
MACHINE SIZE | |
Overall dimension (L*W*H) | 4915mm*1720mm*2525mm |
Axle base(Track length on ground) | 1670mm |
Track gauge | 1420mm |
Min.Ground clearance | 295mm |
Swing radius at tail | 860mm |
Boom length | 2538mm |
WORKING RANGE | |
Max. Digging height | 4800mm |
Max. Dumping height | 3406mm |
Max. Digging depth | 3208mm |
Max. Vertical digging depth | 2957mm |
Max. Digging radius | 5480mm |
Min .swing radius at front | 2530mm |
Max. Lifting height of blade | 365mm |
Max. Cutting depth of blade | 385mm |
Boom swing angle(Left) | 55° |
Boom swing angle(Right) | 65° |
Product Details
Customization
With our dedicated in-house R&D team, we provide extensive customization options tailored precisely to your needs. Whether you want to choose custom colors and paint designs, incorporate your own branding through OEM services, or select from a diverse range of engines—including trusted Chinese models, Euro Stage III/V, and EPA Tier 4 compliant options—we have you covered. Additionally, we accommodate technical modifications such as bespoke adapter plates, manufacturing entirely to your provided drawings or specifications, ensuring each machine is uniquely suited to your requirements.
Packing & Delivery:
Various loading/delivery way available, by container, trailer, or shipped as collected container, all are ok for the mini excavator
Certificates
FAQ:
Q: Is your company a manufacturer?
A: We operate our own manufacturing facility and would be delighted to host you for a factory visit.
Q: Are customized services available?
A: Customization is something we gladly provide—feel free to reach out to discuss your requirements.
Q: What services come with a purchase?
A: Every purchase includes a warranty and ongoing lifetime support to assist you whenever needed.
