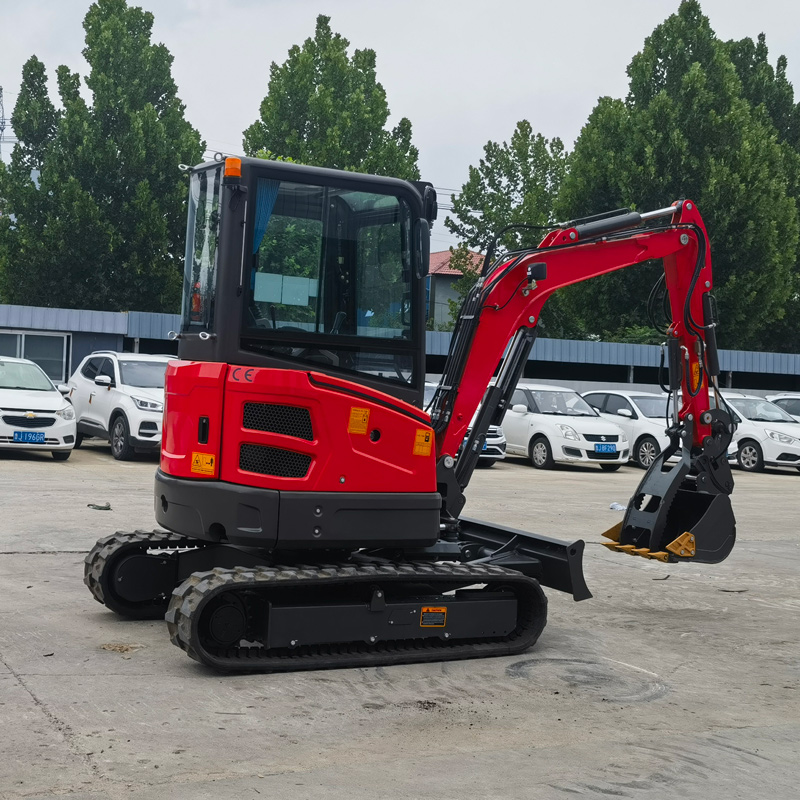

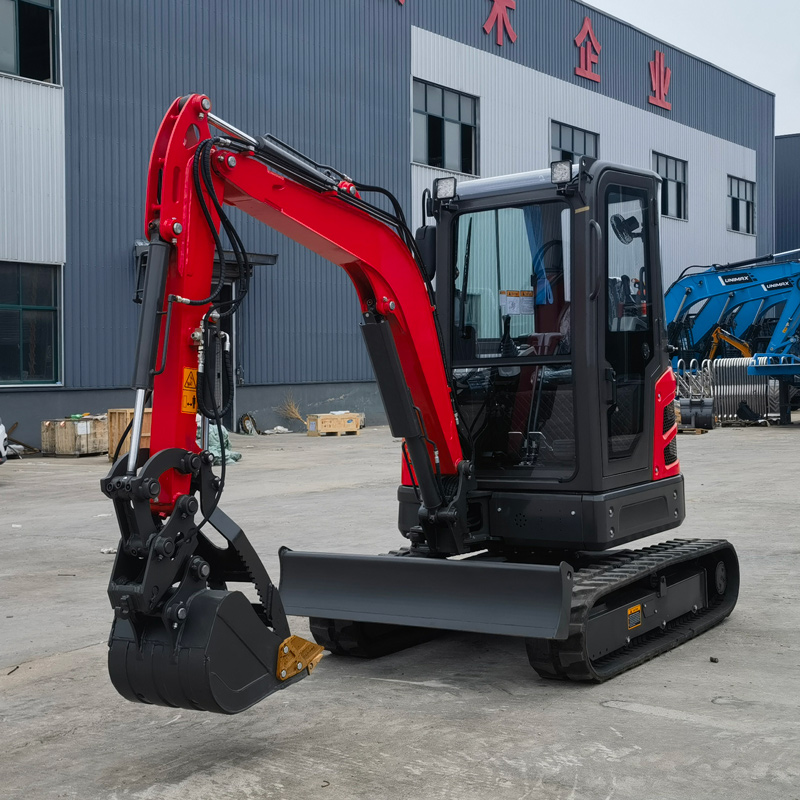

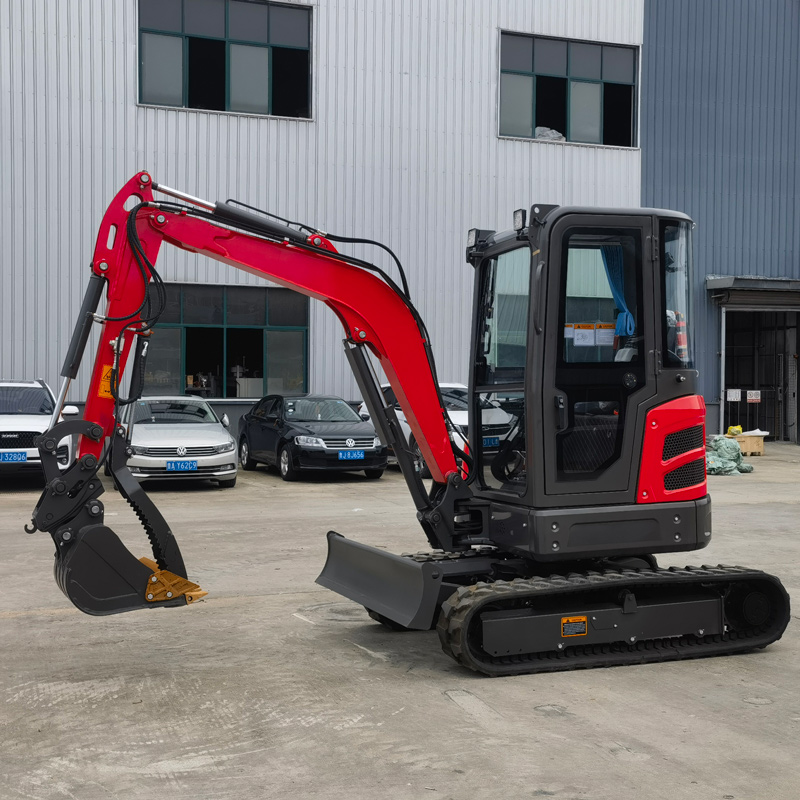

2.7 Ton Excavator
Powered by KUBOTA D1105 Engine – Reliable Euro 5/EPA Tier 4 compliance for clean, efficient performance.
Swing Boom Design – Enables easy operation near walls or tight edges.
Enclosed Cabin – Provides comfort and protection in all weather conditions.
Hydraulic Pilot Control – Ensures smooth and precise operation.
Versatile & Attachment-Ready – Equipped with rubber tracks, hammer pipeline, and optional hydraulic quick coupler.

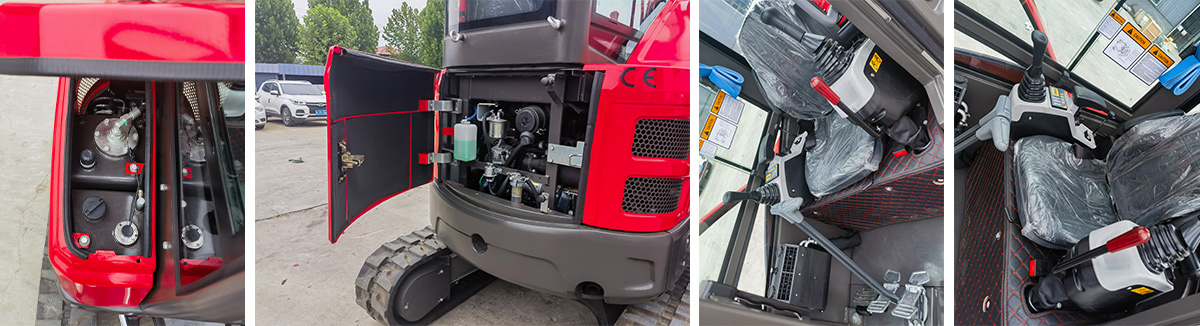

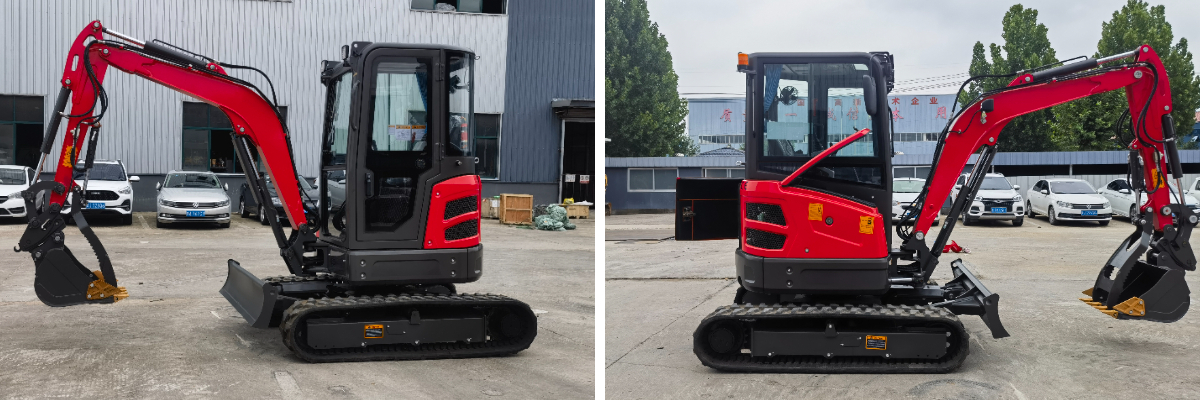

Product Details
Product Introduction
User-Friendly Operation
The SC27 excavator is designed for ease of use, enabling even those without prior experience to quickly master driving and operating the machine.
Powerful Performance in a Compact Frame
Despite its compact size, this 3-ton excavator delivers impressive lifting and digging capabilities to boost your work efficiency. Its retractable undercarriage allows it to navigate tight spaces, while features like dig-to-blade and dozer float simplify site cleanup.
Versatile Design
Equipped with a standard hammer pipeline, the excavator supports direct connection to a hydraulic breaker. With the optional hydraulic quick coupler, it can swiftly switch between attachments such as grapples and rippers, making it adaptable to a wide range of tasks.
Product Specifications
ENGINE | |
Model | KUBOTA D1105, Euro 5 |
Power /Rotation speed | 14kw(19HP)@2200rpm |
Type | 3 cylinders, Water cooled, in-line,4-stroke,mechnical pump. Naturally aspirated |
Max. torque of engine | 70.3Nm/ 1600rpm |
Displacement of engine | 1.123L |
Engine oil capacity | 5.1L |
TRACK SYSTEM | |
Maximum Travel speed(High-Low speed) | 2.6/4.5km/h |
Width of track shoe(Rubber ) | 300mm |
Carrier roller/Support wheel (one side) | 1/3 |
PERFORMANCE PARAMETER | |
Standard bucket capacity | 0.1m³ |
Width of standard bucket | 500mm |
Swing speed | 10 rpm |
Max. Grade ability | 58% |
Max. Bucket digging force | 23.5KN |
Max. Arm digging force | 14KN |
Hydraulic system pressure | 20.5Mpa |
Ground pressure | 24Kpa |
Machine weight | 2750kg |
Fuel tank capacity | 23L |
Hydraulic oil tank capacity | 24L |
Flow of main pump(Variable piston pump) | 61.6L/ min |
MACHINE SIZE | |
Overall dimension (L*W*H) | 4195mm*1550mm*2480mm |
Axle base(Track length on ground) | 1565mm |
Track gauge | 1250mm |
Min.Ground clearance | 286mm |
Swing radius at tail | 860mm |
Boom length | 2200mm |
Arm length | 1300mm |
WORKING RANGE | |
Max. Digging height | 4427mm |
Max. Dumping height | 3005mm |
Max. Digging depth | 2830mm |
Max. Vertical digging depth | 2530mm |
Max. Digging radius | 4835mm |
Min .swing radius at front | 2160mm |
Max. Lifting height of blade | 308mm |
Max. Cutting depth of blade | 363mm |
Boom swing angle(Left) | 69° |
Boom swing angle(Right) | 45° |
Product Details
Customization
As a manufacturer with an in-house R&D team, we offer a full range of customization services to suit your unique requirements:
Color Customization – Select the color you llike and personalized paint scheme.
Branding Support – OEM service available to apply your own logos and brands.
Engine Options – A wide variety of choices, including reputable Chinese brands, Euro Stage III/V, and EPA Tier 4-compliant engines and so on.
Technical Customization – Components such as adapter plates can be customized according to your drawings or specific technical specifications.
Packing & Delivery:
Various loading/delivery way available, by container, trailer, or shipped as collected container, all are ok for the mini excavator
Certificates
FAQ:
Q: Do you produce your own products?
A: Yes, we have our own factory and warmly invite you to come see our operations firsthand.
Q: Can you tailor products to customer specifications?
A: Absolutely, we’re happy to offer personalized solutions—please contact us to talk about your needs.
Q: What kind of after-sales assistance do you provide?
A: All purchases come with warranty protection and lifelong customer support whenever you require it.
