Small Telescopic Handler Telehandler
User-Friendly Operation – Joystick control with hydrostatic transmission for precise handling.
Safe Lifting – Self-levelling boom with built-in safety valve.
Powerful Mobility – 4WD with front/crab/4-wheel steering modes.
Maintenance-Free Braking – Reliable wet brake axle, no maintenance required.
Quick Attachment Change – Hydraulic quick hitch for fast tool swaps.
Versatile Hydraulics – Hydraulic output for powering various attachments.
Product Introduction

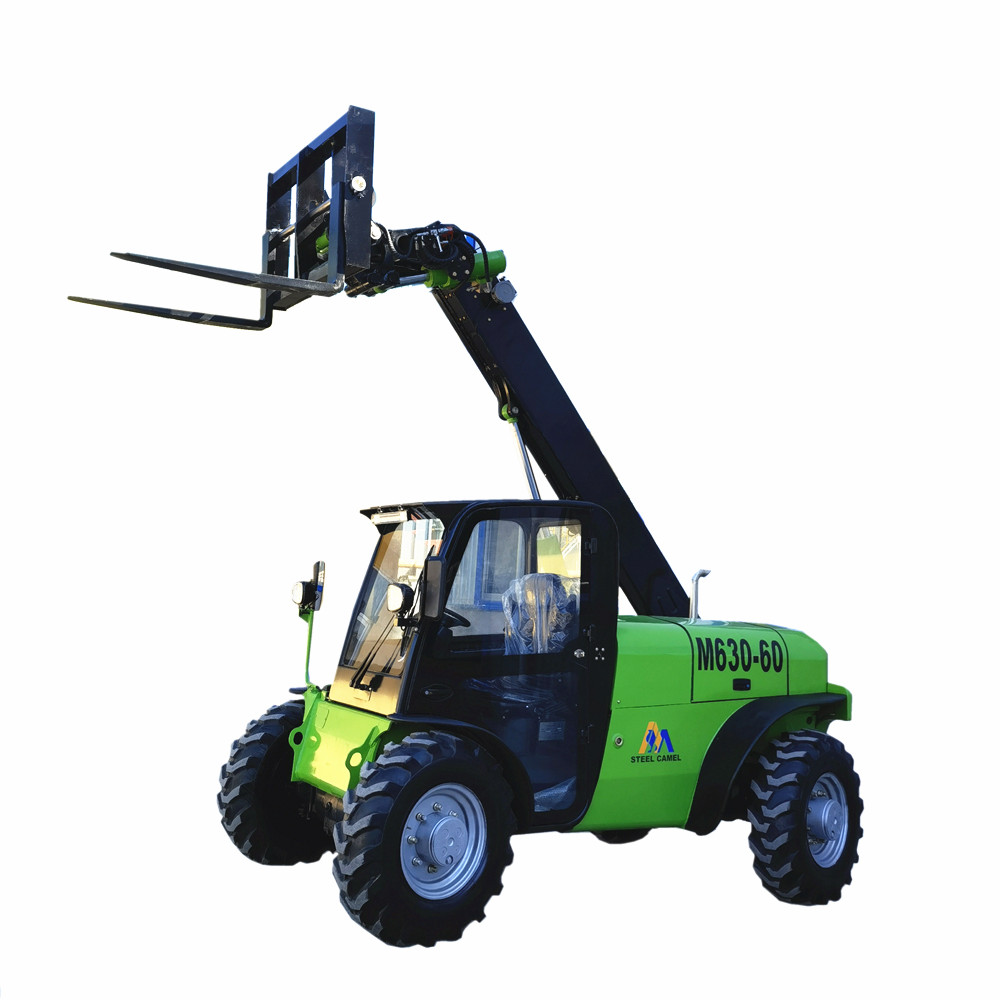

M630-60 is the latest agricultural version telehandler which features the highest operation simplicity, safety and efficiency.
*With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The four-wheel drive and multiple steering modes (four-wheel, front-wheel and crab steering) realize super-strong off-road capability and adapt to diversified working conditions.
* The inching control technology and special overload control system are applied to achieve high
operation safety and reliability.
* The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
Product Specifications
STEEL CAMEL M630 Telehandler (Small Farm Telehandlers) | ||
Description | Unit | Data |
Engine Brand | Yunni/Yanmar/Cummins / FPT Euro 5/EPA Tier 4 available | |
Rated power | kw/hp | 55~75 / 75~102 |
Lifting capacity | kg/lbs | 3000 / 6600 |
Max. Lifting height | mm/ft | 7250 / 22 |
Weight | kg/lbs | 6900 / 15180 |
Dimension | Mm / inch | 4250*2200*2490 / 170*88*100 |
Fork Length | mm/inch | 1120 / 45 |
Speed | Km/h , Mile/h | 10/22 , 6/14 |
Min. Turning radius | mm/inch | 4150 / 166 |
Tyre | 16/70-20 | |
System pressure | Mpa/Psi | 22 / 3190 |
Hydraulic output | L/min Gal/min | 96 / 25 |
Product Details
Customization
As a manufacturing factory with our own R&D department, we offer customized services for engines, colors, branding, and technical requirements.
Color: Choose your preferred color and custom paint design.
Brand: OEM available — you can apply your own logo on the machines.
Engine: Various engine options available, including Chinese brands, Euro 3, Euro 5, and EPA Tier 4 compliant engines.
Other: Customized adapter plates or production according to your drawings are also accepted.
Packing & Delivery:
Thanks to the compact size of the M630 Telehandler, it can be driven into container directly. Loading quantity: 1 set/20ft container; 3 sets/40ft container.
Certificates
During years of developement, we have obtained 9 patents, and was authorized "National High Tech Enterprise"
As high-end products, all our machines have CE certificates.
